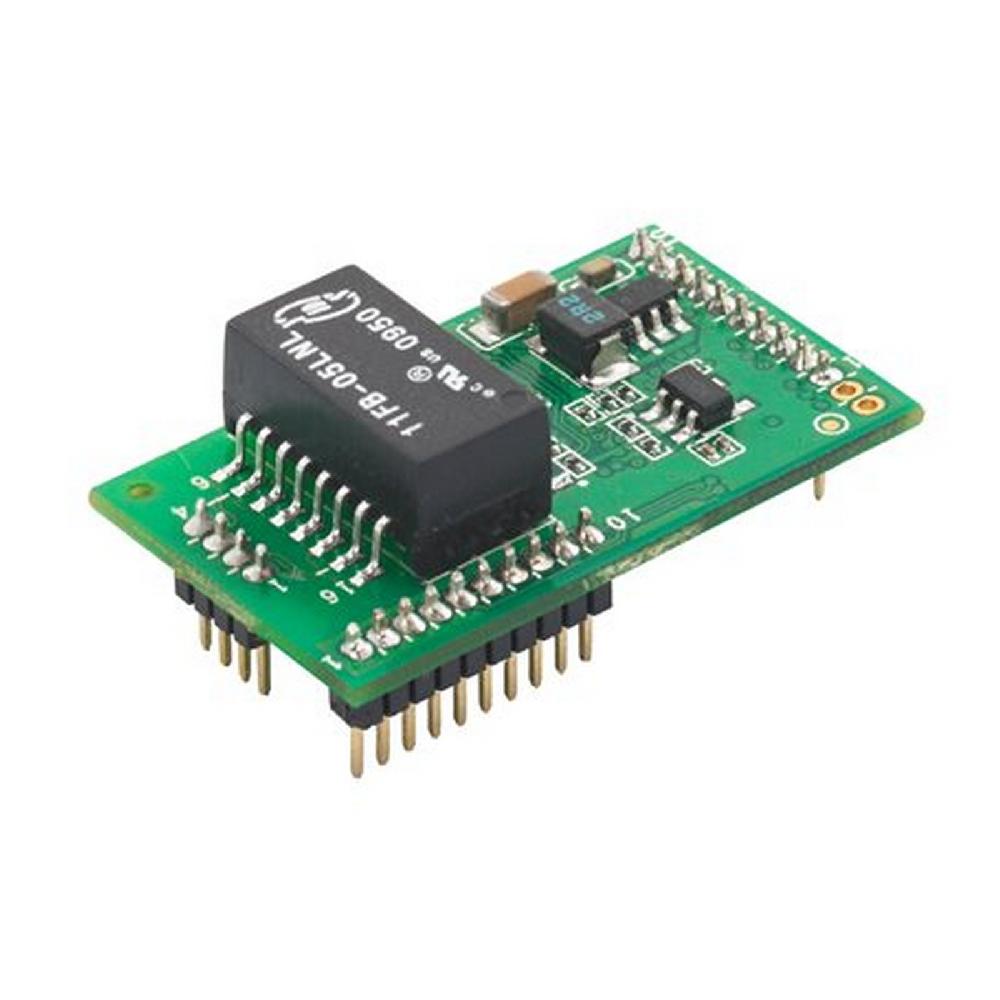

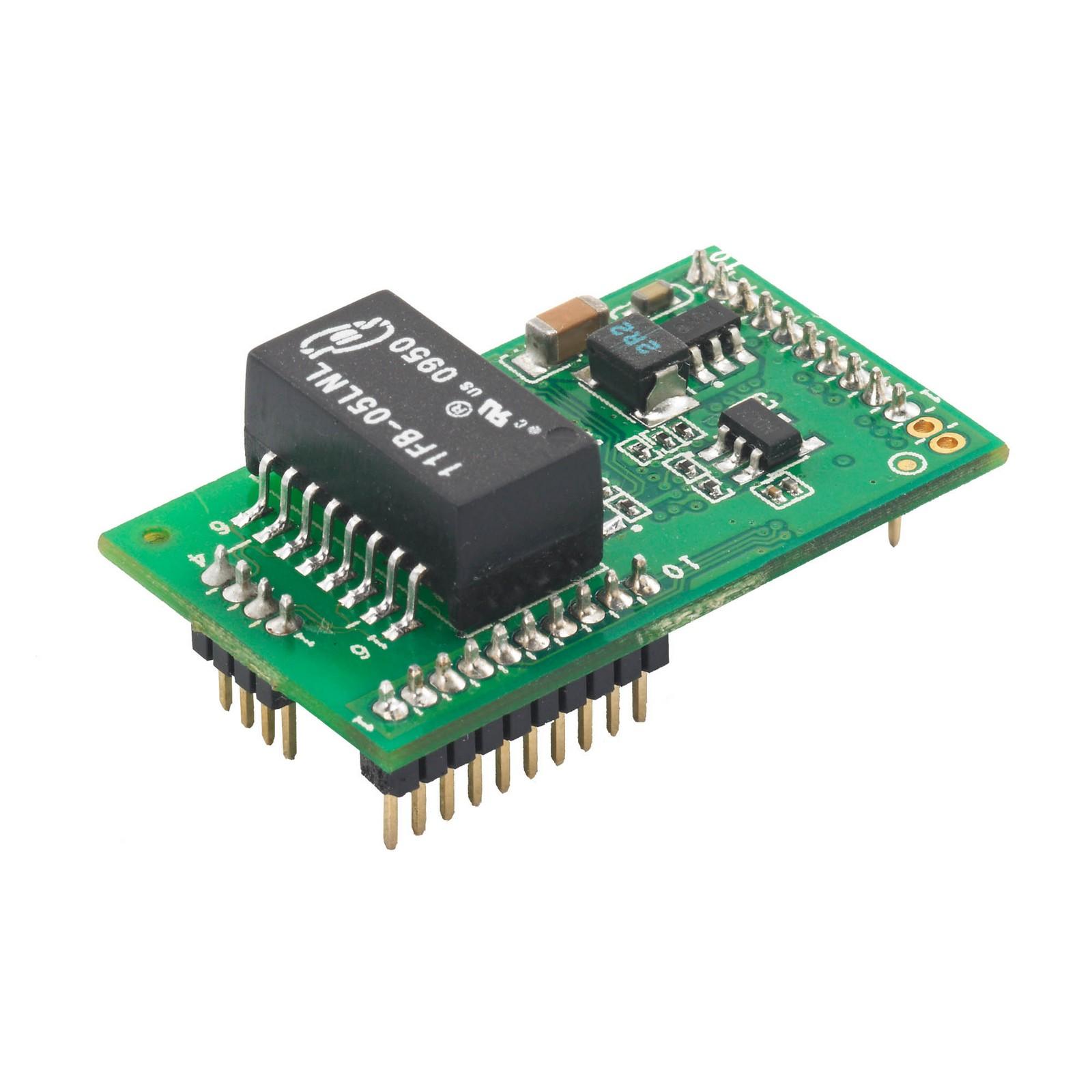

Moxa’s MiiNePort E2 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E2 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, delivers a serial baudrate of up to 921.6 kbps, offers a versatile selection of ready-to-use operation modes, and requires a minimal amount of power. With Moxa's innovative NetEZ technology, the MiiNePort E2 can convert any device with a standard serial interface to an Ethernet-enabled device. In addition, the MiiNePort E2 is the smallest embedded device server without an RJ45 connector, making it easy to fit into virtually any existing serial device.
Embedded System | |
| CPU | 32-bit Arm Core |
Memory | |
| Flash | 2 MB |
| SDRAM | 4 MB |
Input/Output Interface | |
| Configurable DIO Channels (by software) | 4 |
Ethernet Interface | |
| 10/100BaseT(X) Ports, Auto MDI/MDI-X | 4-pin pin header |
| Magnetic Isolation Protection | 1.5 kV (built-in) |
Ethernet Software Features | |
| Configuration Options | Web Console (HTTP), Windows Utility |
| Management | ARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP, SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP |
| Windows Real COM Drivers | Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Real TTY Drivers | Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x |
| Fixed TTY Drivers | SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Android API | Android 3.1.x and later |
Serial Interface | |
| No. of Ports | 1 |
| Serial Standards | TTL |
| Operation Modes | MiiNePort E1 Series: Real COM mode, RFC2217 mode, TCP Client mode, TCP Server mode, UDP mode MiiNePort E1-SDK: Real COM mode, Ethernet Modem mode |
| Baudrate | MiiNePort E1 Series: 50 bps to 230.4 kbps MiiNePort E1-H/-SDK Series: 50 bps to 921.6 kbps |
| Data Bits | 5, 6, 7, 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | None, Even, Odd, Space, Mark |
| Flow Control | None, RTS/CTS, XON/XOFF |
Serial Signals | |
| TTL | • TxD, RxD, RTS, CTS, RST (reset circuit), GND |
NetEZ Technology | |
| NetEZ Functions | ExTrigger, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel Serial Communication) |
Serial Software Features | |
| Serial to Ethernet Sample Source Code | MiiNePort E1-SDK (Integrated in MiiNePort-IDE): 1. TCP Server Echo 2. TCP Server to Serial (Single connection) 3. TCP Server to Serial (Multi-connection) 4. TCP Client Echo 5. TCP Client to Serial (Startup) 6. TCP Client to Serial (Any character) 7. TCP Client to Serial (Designed destination TCP/IP port from serial) 8. UDP Echo 9. UDP to Serial |
Power Parameters | |
| Input Current | 157 mA @ 3.3 VDC |
| Input Voltage | 3.3 to 5 VDC |
Physical Characteristics | |
| Dimensions | MiiNePort E2/E2-H/E2-SDK Series: 29 x 17 x 12.6 mm (1.14 x 0.67 x 0.50 in) |
| Weight | MiiNePort E2/E2-H Series: 5 g (0.01 lb) MiiNePort E2-ST/E2-H-ST/E2-SDK: 77 g (0.17 lb) |
| Form Factor Type | Drop-in modules |
Environmental Limits | |
| Operating Temperature | Standard models: 0 to 55˚C (32 to 131˚F) Wide Temp. models: -40 to 85˚C (-40 to 185˚F) |
| Storage Temperature (package included) | -40 to 60°C (-40 to 140°F) |
| Ambient Relative Humidity | 5 to 95% (non-condensing) |
Standards and Certifications | |
| EMS | IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF IEC 61000-4-11 DIPs |
| Environmental Testing | IEC 60068-2-1 IEC 60068-2-3 |
| EMC | EN 55032/24 |
| EMI | CISPR 32, FCC Part 15B Class B |
| Shock | IEC 60068-2-27 |
| Vibration | IEC 60068-2-6 |
Declaration | |
| Green Product | RoHS, CRoHS, WEEE |
MTBF | |
| Time | 5,696,350 hrs |
| Standards | Telcordia SR332 |
Warranty | |
| Warranty Period | 5 years |
| Details | See www.moxa.com/warranty |
| Name | Type | Version | Release Date | |
| Datasheet for MiiNePort E2 Series | Datasheet | V1.4 | 27 April 2020 |
| No. of Serial Ports | 1 |
| Supported Baudrates | 50 bps to 230.4 kbps |
| Operating Temp. | 0 to 55°C |
| With Evaluation Board | - |
| With Software Development Kit | - |
| No. of Serial Ports | 1 |
| Supported Baudrates | 50 bps to 921.6 kbps |
| Operating Temp. | 0 to 55°C |
| With Evaluation Board | - |
| With Software Development Kit | - |
| No. of Serial Ports | 1 |
| Supported Baudrates | 50 bps to 230.4 kbps |
| Operating Temp. | -40 to 85°C |
| With Evaluation Board | - |
| With Software Development Kit | - |
| No. of Serial Ports | 1 |
| Supported Baudrates | 50 bps to 921.6 kbps |
| Operating Temp. | -40 to 85°C |
| With Evaluation Board | - |
| With Software Development Kit | - |
| No. of Serial Ports | 1 |
| Supported Baudrates | 50 bps to 230.4 kbps |
| Operating Temp. | 0 to 55°C |

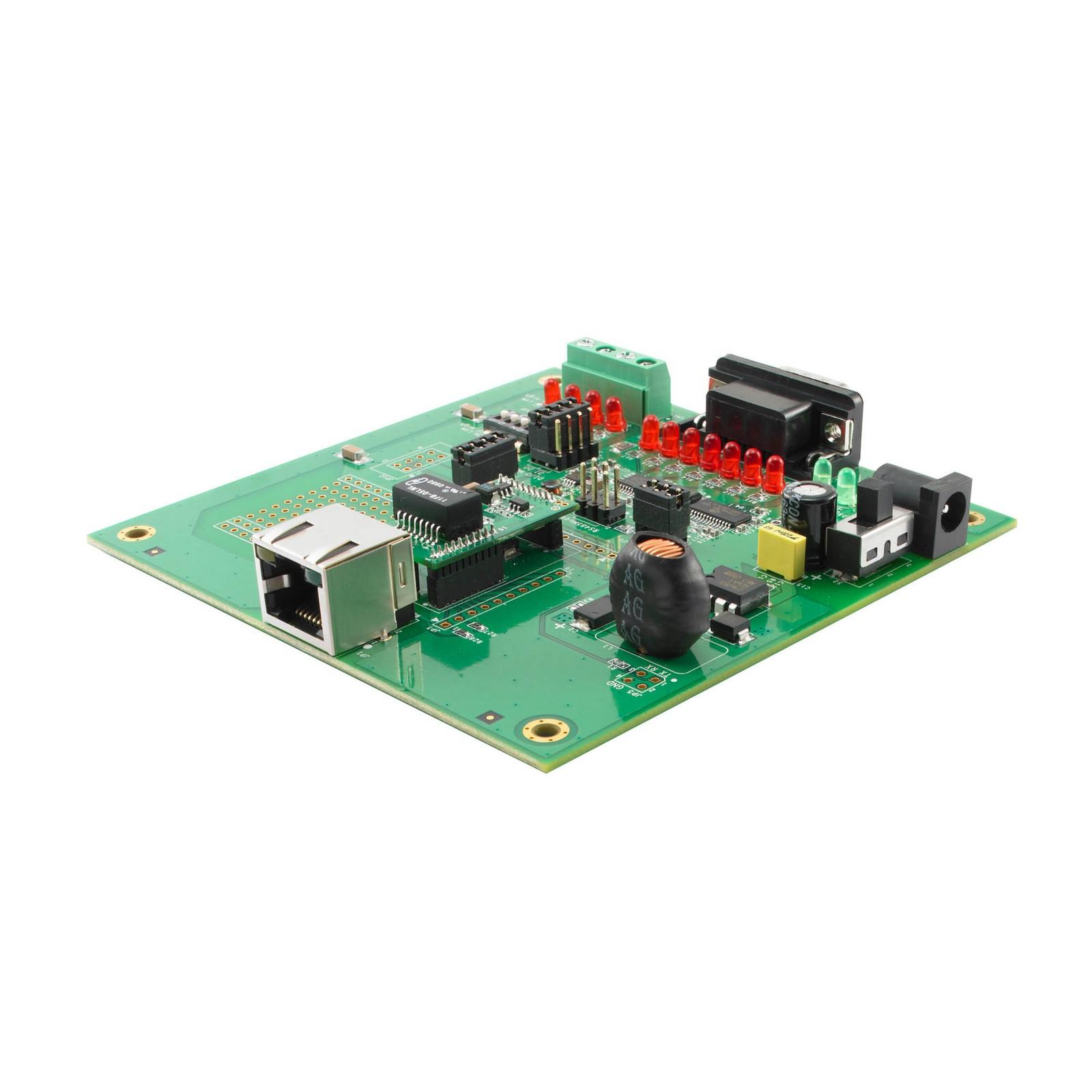

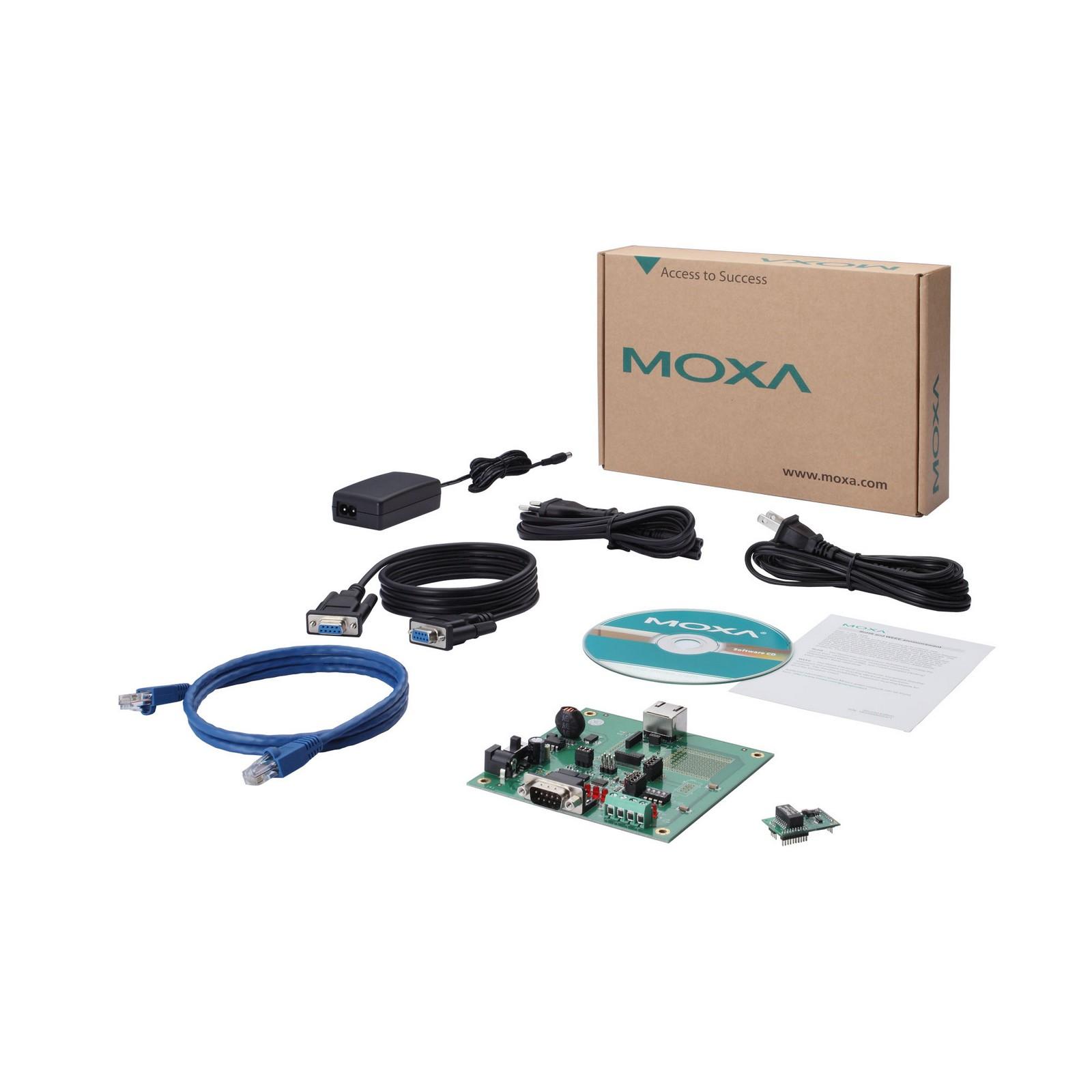

| With Evaluation Board | ✓ |
| With Software Development Kit | - |
| No. of Serial Ports | 1 |
| Supported Baudrates | 50 bps to 921.6 kbps |
| Operating Temp. | 0 to 55°C |
| With Evaluation Board | ✓ |
| With Software Development Kit | - |
| No. of Serial Ports | 1 |
| Supported Baudrates | 50 bps to 921.6 kbps |
| Operating Temp. | 0 to 55°C |
| With Evaluation Board | ✓ |

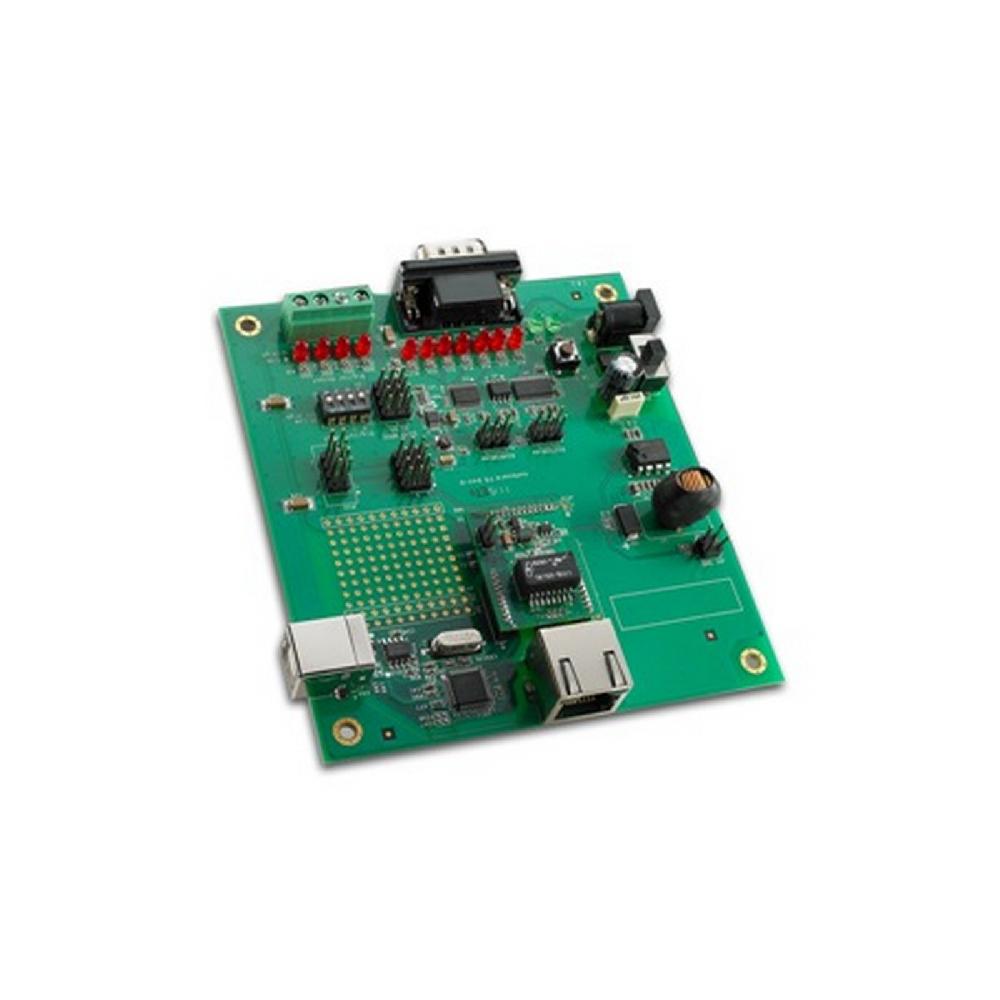

| With Software Development Kit | ✓ |
