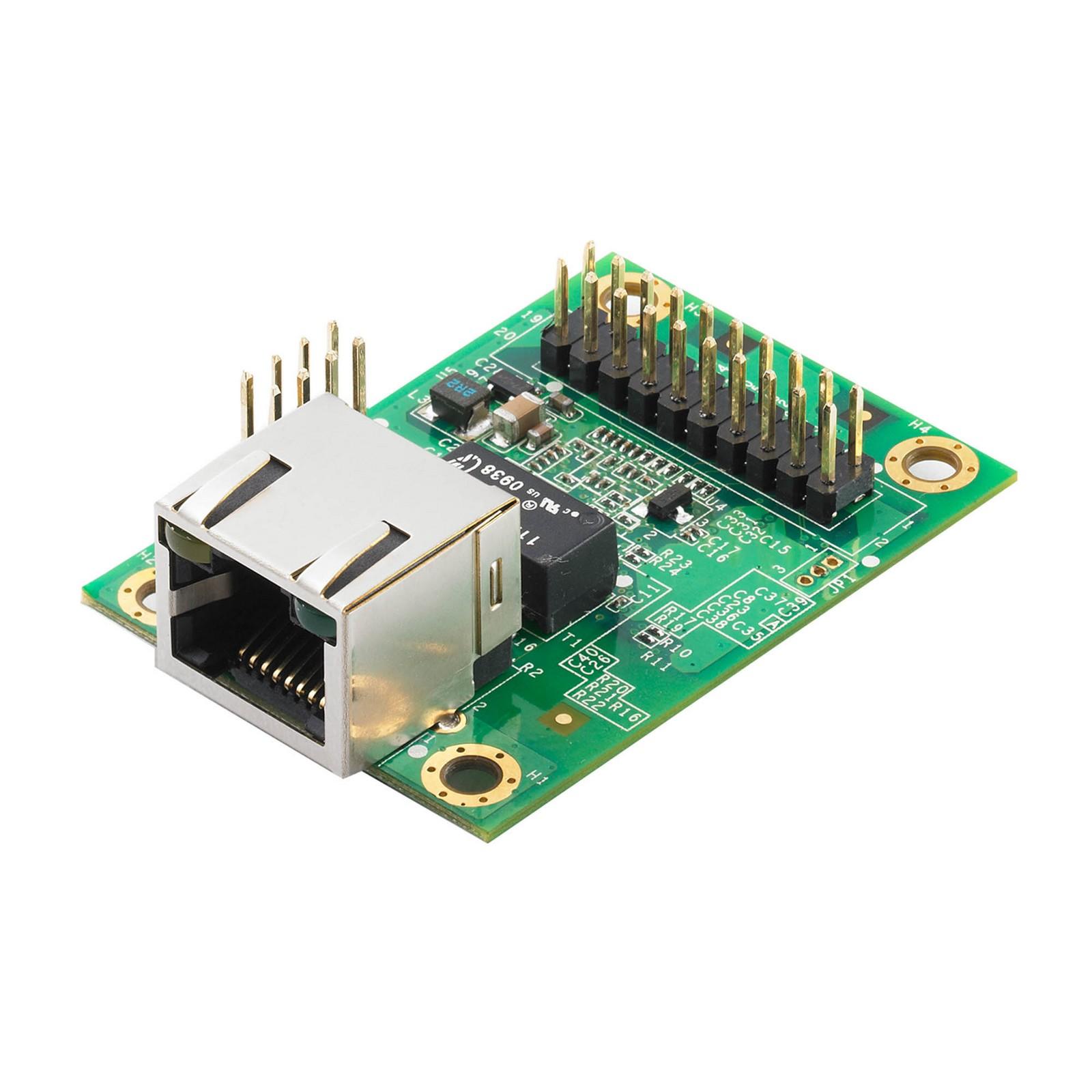

MiiNePort E3 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   Serial Embedded Modules

10/100 Mbps embedded drop in module serial device servers with PoE pass-through support

Product Feature

  • IEEE 802.3af compliant PoE passthrough
  • Use Moxa’s high-quality and reliable second-generation MiiNe SoC
  • Variety of operation modes fulfill specific application requirements
  • Green design with extremely low power consumption
  • MiiNePort NetEZ technology makes integration incredibly easy
  • Highly compact embedded device module

Introduction

Moxa’s MiiNePort E3 Series embedded device servers are designed for manufacturers who want to add sophisticated network connectivity to their serial devices with minimal integration effort. The MiiNePort E3 is empowered by the MiiNe, Moxa’s second-generation SoC, which supports 10/100 Mbps Ethernet, up to 921.6 kbps serial baudrate, a versatile selection of ready-to-use operation modes, and requires only a small amount of power. By using Moxa’s innovative NetEZ technology, the MiiNePort E3 can be used to convert any device with a standard serial interface to an Ethernet-enabled device in no time. In addition, the MiiNePort E3 is a compact embedded device server with an RJ45 connector, making it easy to fit into virtually any existing serial device.



Moxa’s Second-generation SoC

  • The MiiNe was created to provide manufacturers with a competitive embedded serial-to-Ethernet solution. The MiiNePort E3, which uses the MiiNe for its SoC, is a compact embedded device server that has the lowest power consumption among similar products. The MiiNe has the following features:
  • Designed for serial-to-Ethernet applications
  • Uses an Arm core
  • Uses Moxa’s own advanced UART technology
  • 2 MB Flash and 4 MB SDRAM memory built in

Embedded System

CPU32-bit Arm Core

Memory

Flash2 MB
SDRAM4 MB

Input/Output Interface

Configurable DIO Channels (by
software)
4

Ethernet Interface

Magnetic Isolation Protection1.5 kV (built-in)
PoE Pass-throughIEEE 802.3af for PoE
10/100BaseT(X) Ports, Auto
MDI/MDI-X
8-pin RJ45

Ethernet Software Features

Configuration OptionsWeb Console (HTTP), Windows Utility
ManagementARP, BOOTP, Device Search Utility (DSU), DHCP Client, IPv4, SMTP,
SNMPv1, TCP/IP, Telnet, TFTP, UDP, ICMP
Windows Real COM DriversWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10
(x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded
CE 5.0/6.0, Windows XP Embedded
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10,
FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android APIAndroid 3.1.x and later

Serial Interface

No. of Ports1
Serial StandardsTTL
Operation ModesReal COM mode, TCP Server mode, TCP Client mode, UDP mode,
RFC2217 mode, Ethernet Modem mode
BaudrateMiiNePort E1 Series: 50 bps to 230.4 kbps
MiiNePort E1-H/-SDK Series: 50 bps to 921.6 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, RTS/CTS, XON/XOFF

Serial Signals

TTL• TxD, RxD, RTS, CTS, DTR, DSR, DCD, RST (reset circuit), GND

NetEZ Technology

NetEZ FunctionsExTrigger, SCM (Serial Command Mode), AutoCFG, MCSC (Multi-Channel
Serial Communication)

Power Parameters

Input Current157 mA @ 3.3 VDC
Input Voltage3.3 to 5 VDC

Physical Characteristics

DimensionsMiiNePort E3/E3-H Series: 35 x 52.5 x 18 mm (1.38 x 2.07 x 0.71 in)
WeightMiiNePort E3/E3-H Series: 12 g (0.03 lb)
MiiNePort E3-ST/E3-H-ST: 89 g (0.20 lb)

Environmental Limits

Operating TemperatureStandard models: 0 to 55˚C (32 to 131˚F)
Wide Temp. models: -40 to 85˚C (-40 to 185˚F)
Storage Temperature (package
included)
-40 to 60°C (-40 to 140°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class B
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 0.5 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Environmental TestingIEC 60068-2-1
IEC 60068-2-3
ShockIEC 60068-2-27
VibrationIEC 60068-2-6
FreefallIEC 60068-2-6

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

Time5,696,350 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for MiiNePort E3 Series Datasheet V1.2 04 March 2020

MiiNePort E3

No. of Serial Ports 1
Supported Baudrates 50 bps to 230.4 kbps
Operating Temp. 0 to 55°C
With Evaluation Board -

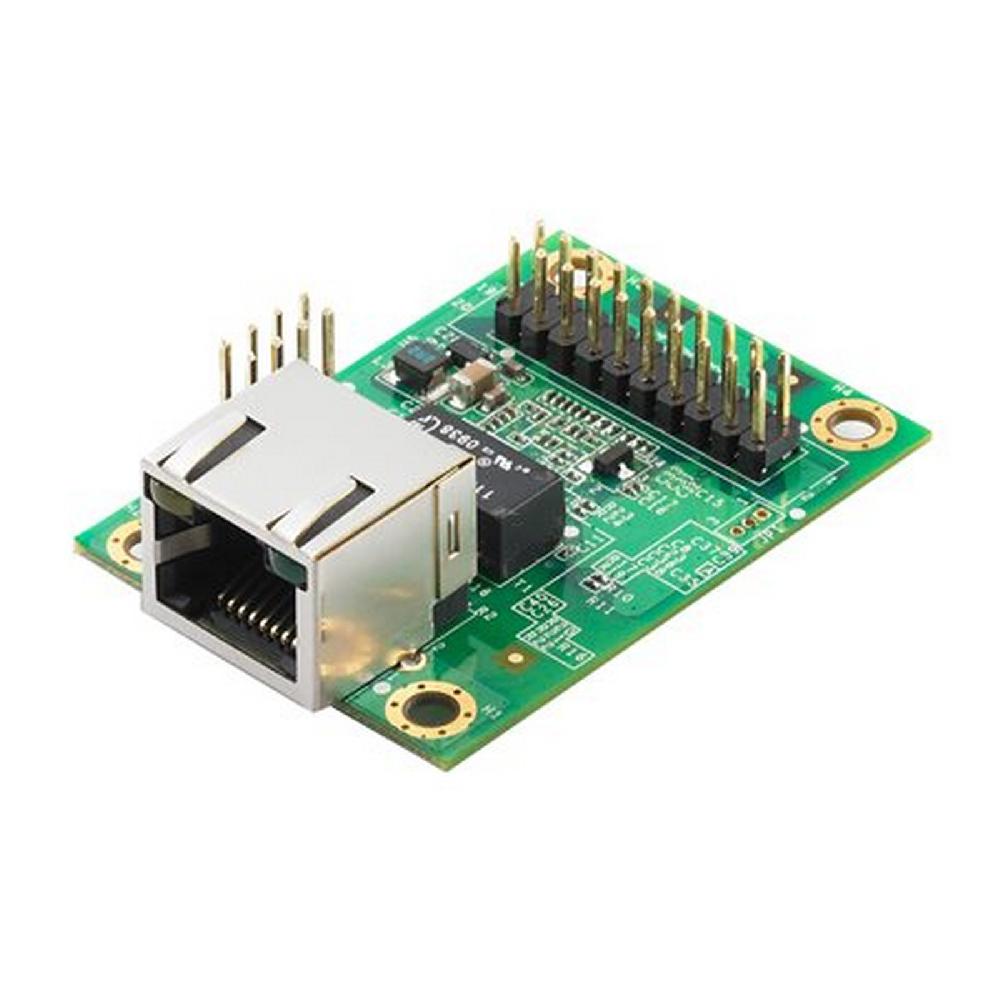

MiiNePort E3-H

No. of Serial Ports 1
Supported Baudrates 50 bps to 921.6 kbps
Operating Temp. 0 to 55°C
With Evaluation Board -

MiiNePort E3-T

No. of Serial Ports 1
Supported Baudrates 50 bps to 230.4 kbps
Operating Temp. -40 to 85°C
With Evaluation Board -

MiiNePort E3-H-T

No. of Serial Ports 4
Supported Baudrates 50 bps to 921.6 kbps
Operating Temp. -40 to 85°C
With Evaluation Board -

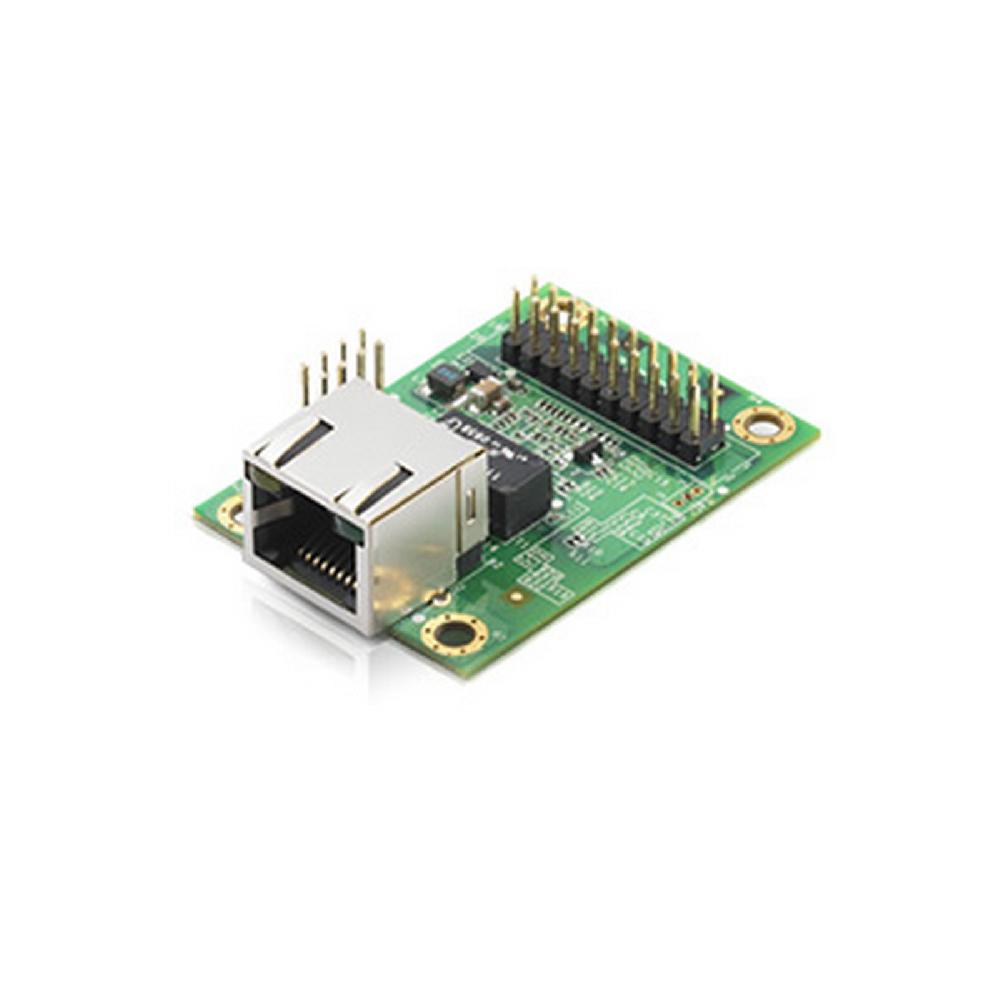

MiiNePort E3-ST

No. of Serial Ports 1
Supported Baudrates 50 bps to 230.4 kbps
Operating Temp. 0 to 55°C

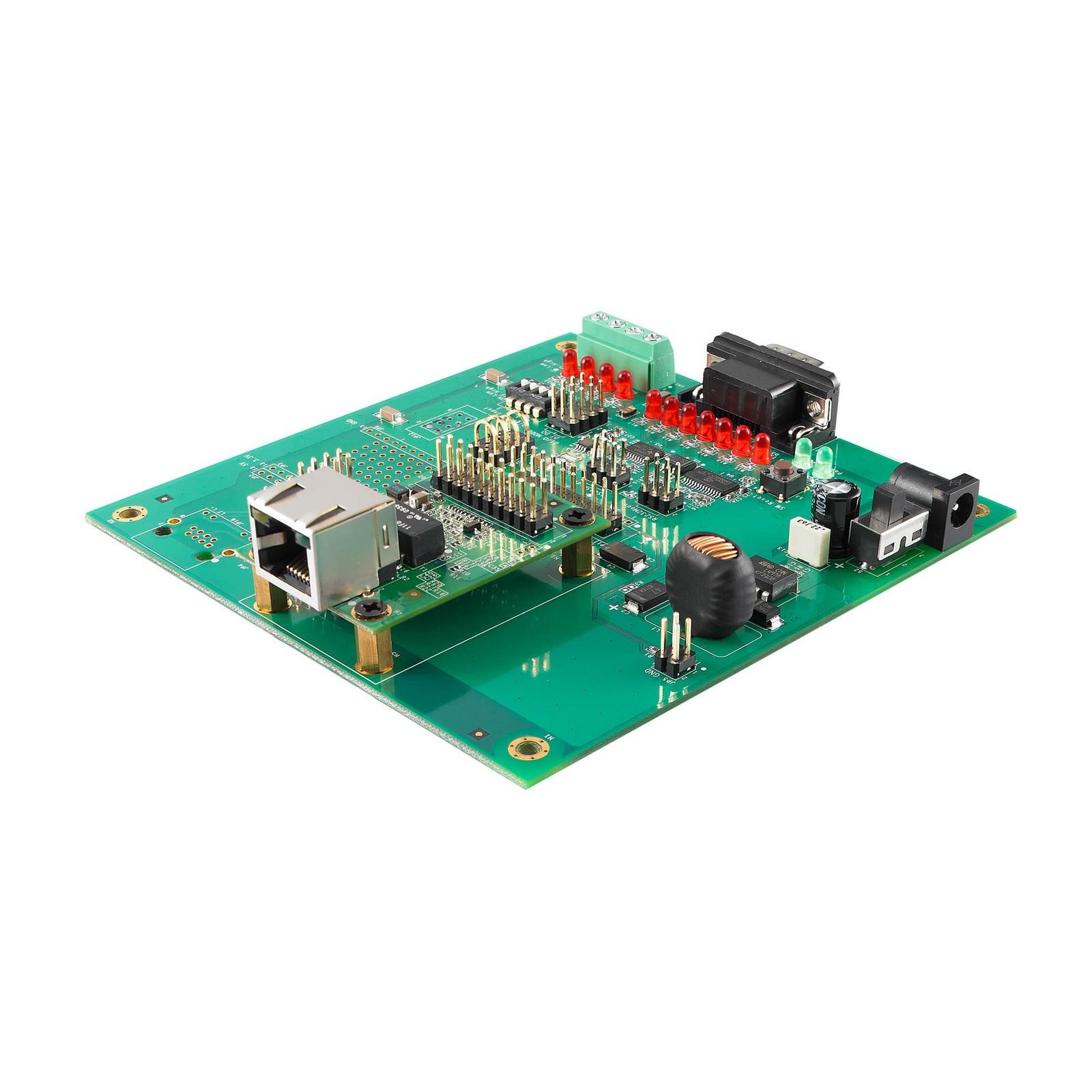

With Evaluation Board

MiiNePort E3-H-ST

No. of Serial Ports 1
Supported Baudrates 50 bps to 921.6 kbps
Operating Temp. 0 to 55°C
With Evaluation Board
