NE-4100-ST Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Serial Device Servers  >   Serial Embedded Modules

10/100 Mbps embedded serial device servers with a starter kit

Product Feature

  • 10/100 Mbps Ethernet interface
  • Supports a baudrate of up to 230.4 kbps
  • Low power consumption at 1.5 W, with single +5 V input

Starter Kits for NE-4100T, NE-4110S/A, NE-4120S/A

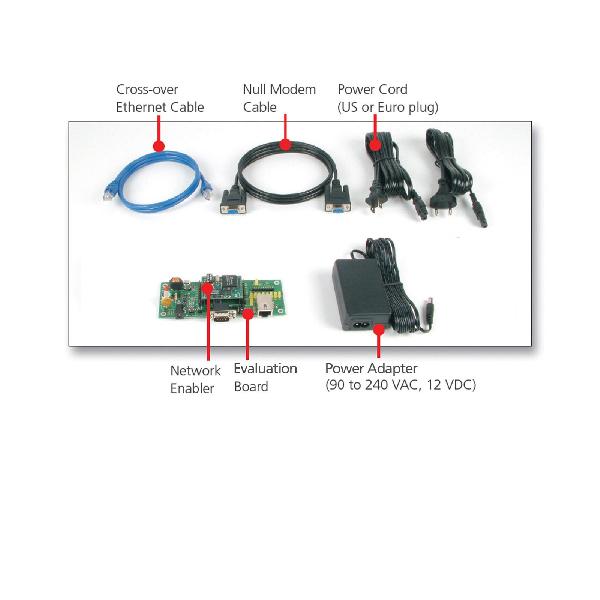

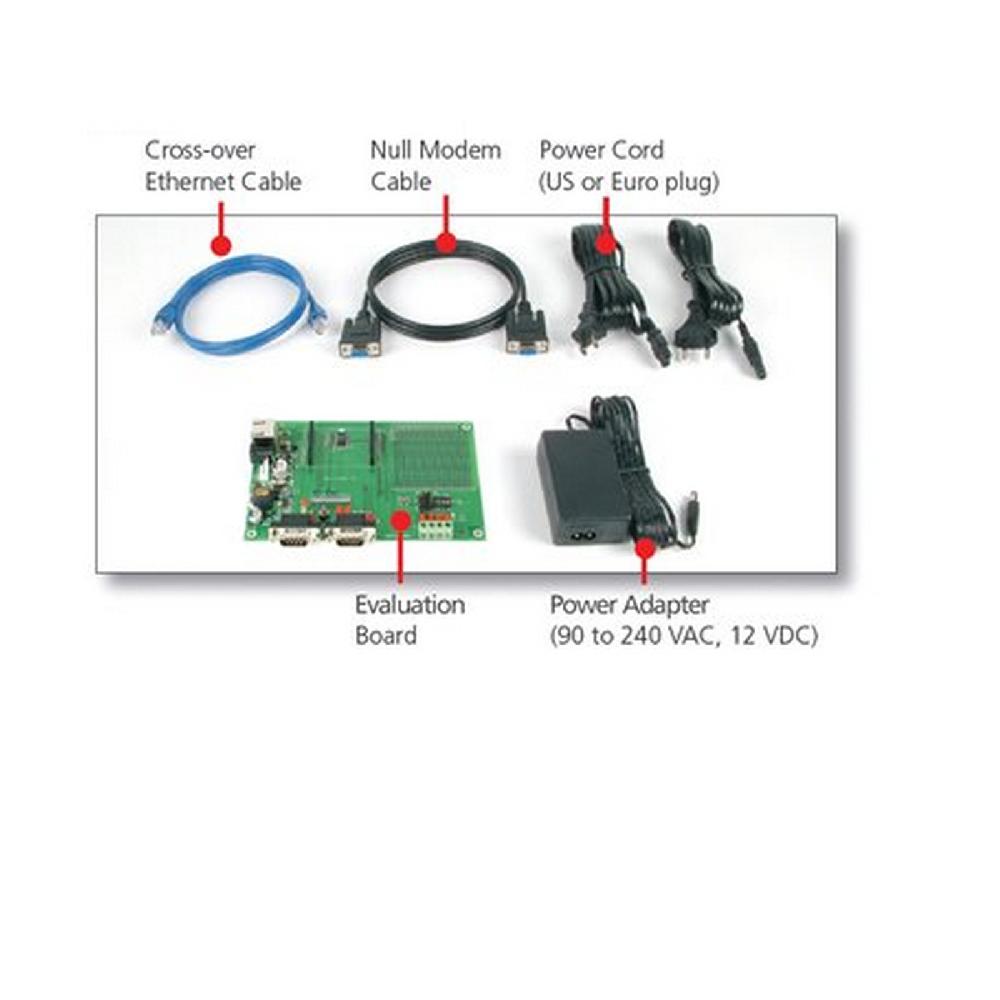

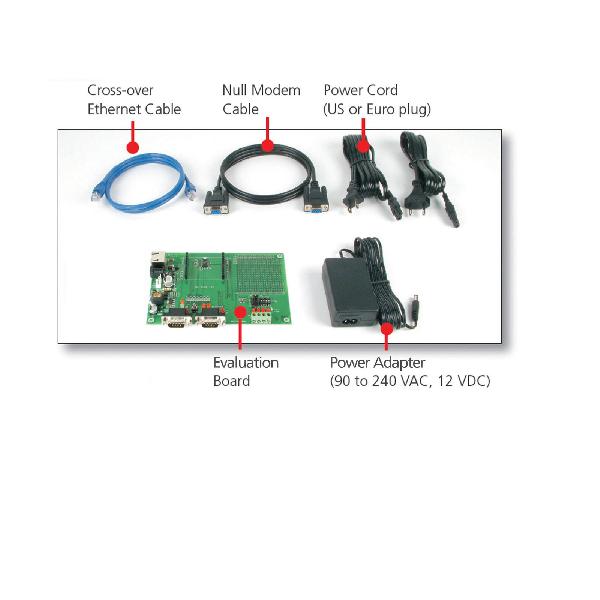

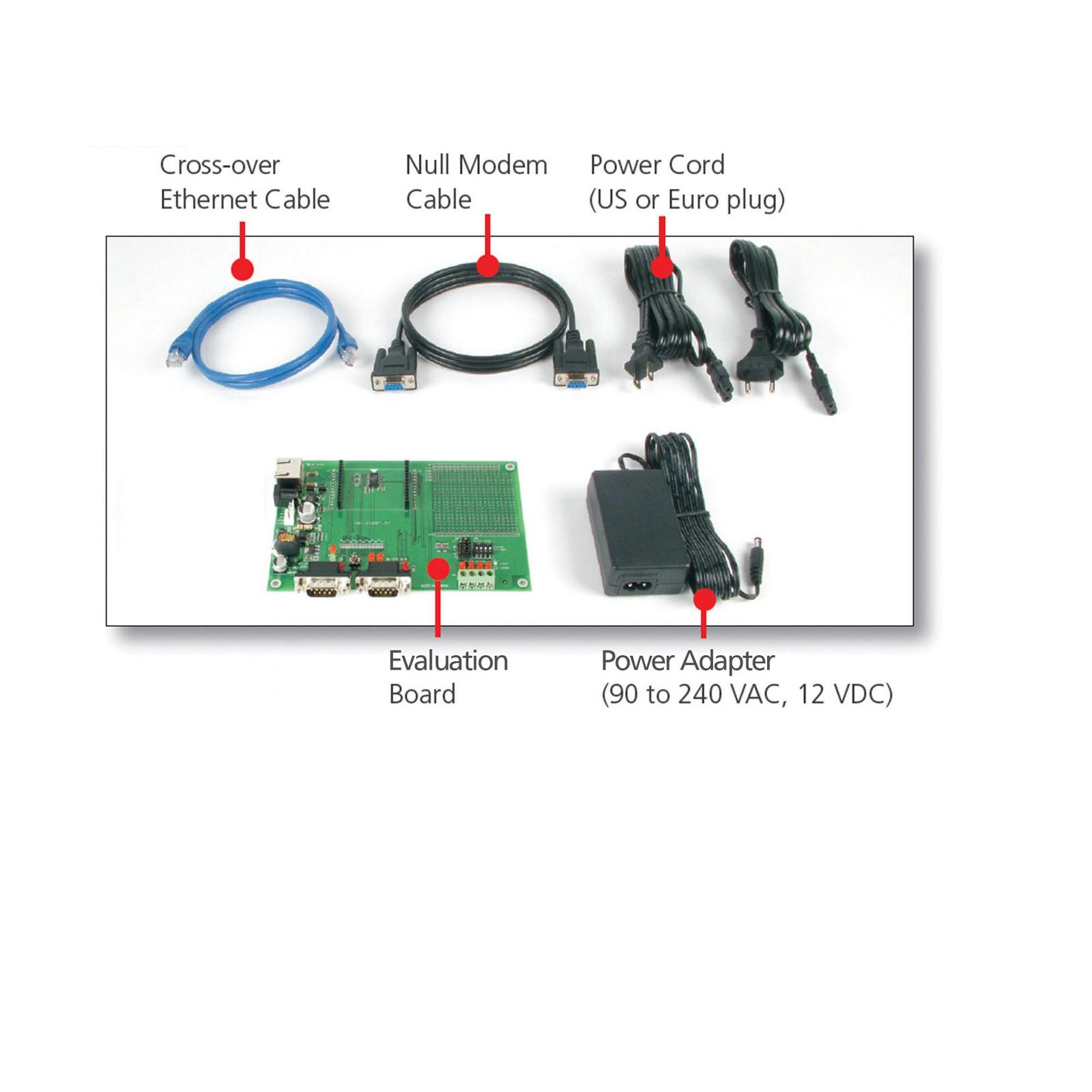

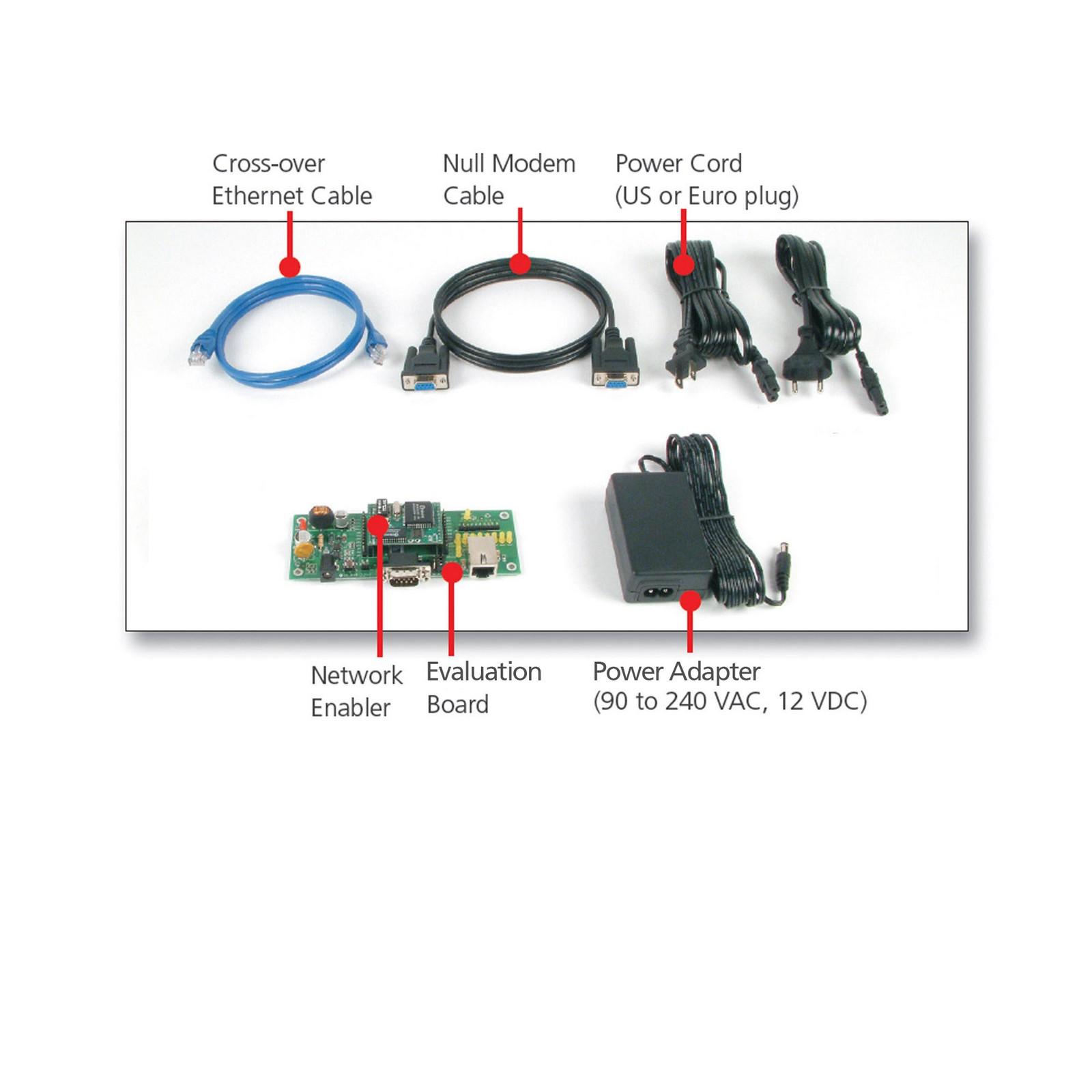

The NE-4100 network enablers come in three types: drop-in (NE-4100T), RJ45 (NE-4110S/A), and pin-header (NE-4120S/A). Moxa provides a starter kit for each NE-4100 Series module. Each starter kit contains an evaluation board that can be used to evaluate the modules and develop applications. Refer to the Ordering Information section below to see which starter kit can be used with which NE-4100 model.

Note: The NE-4100-ST Starter Kits do NOT include a module. To do testing and development, you will also need to purchase at least one NE-4100 Series embedded module. See the Ordering Information section below for a full list of the package contents.

Hardware Requirements

Compatible ModulesNE-4100-ST: NE-4100T
NE-4110-ST: NE-4110S, NE-4110A
NE-4120-ST: NE-4120S, NE-4120A

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for NE-4100-ST Series Datasheet V1.1 24 June 2020

NE-4100-ST

Compatible modules NE-4100T
Form Factor Type Drop-in module
Ethernet Interface 26-pin dual-in-line
Serial Standards TTL
Operating Temp. 0 to 55°C

NE-4110-ST

Compatible modules NE-4110S / NE-4110A
Form Factor Type Ready-to-go pin header module
Ethernet Interface RJ45
Serial Standards RS-232
Operating Temp. 0 to 55°C

NE-4120-ST

Compatible modules NE-4120S / NE-4120A
Form Factor Type Ready-to-go pin header module
Ethernet Interface 5-pin dual-in-line
Serial Standards RS-232
Operating Temp. 0 to 55°C
