Machine Vision Systems

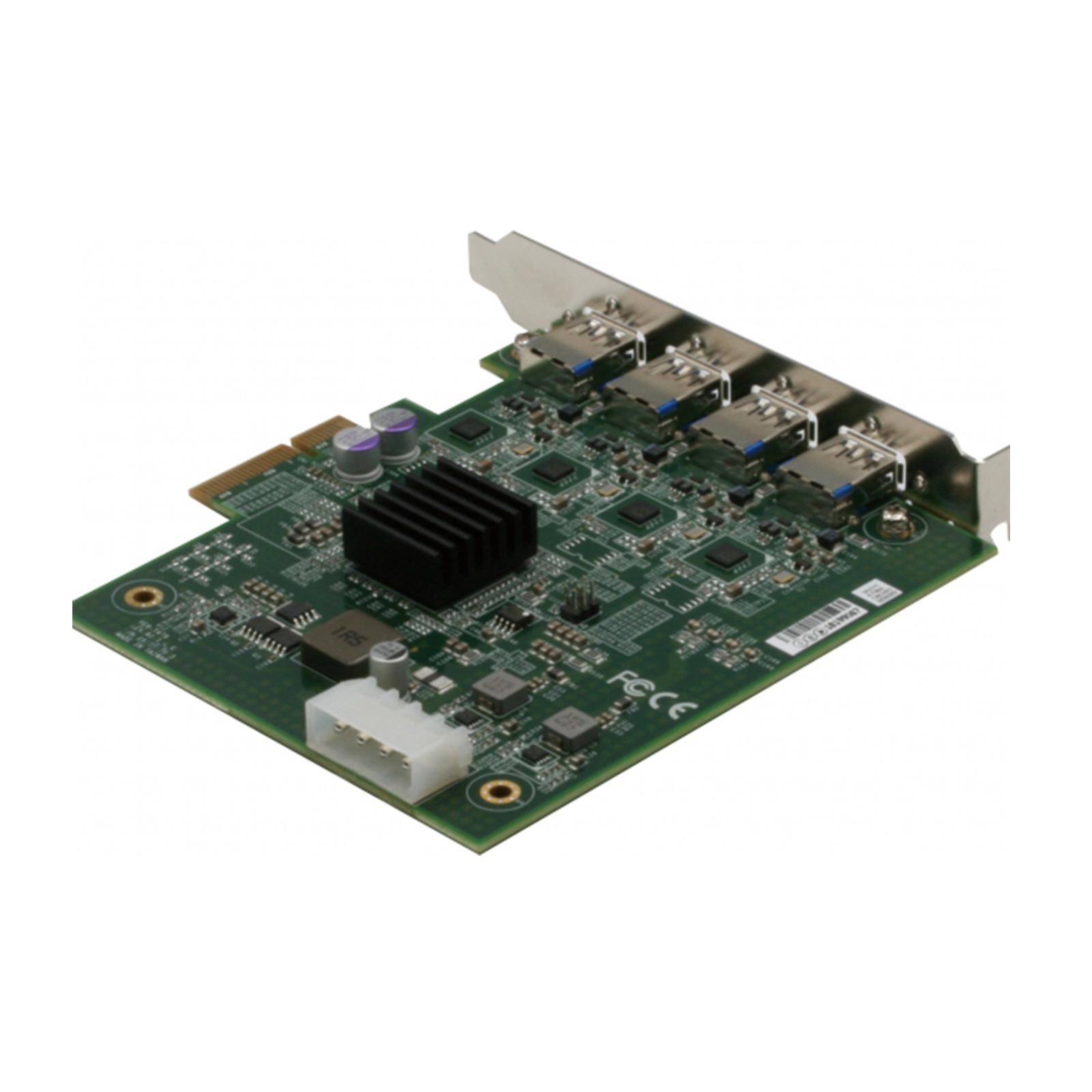

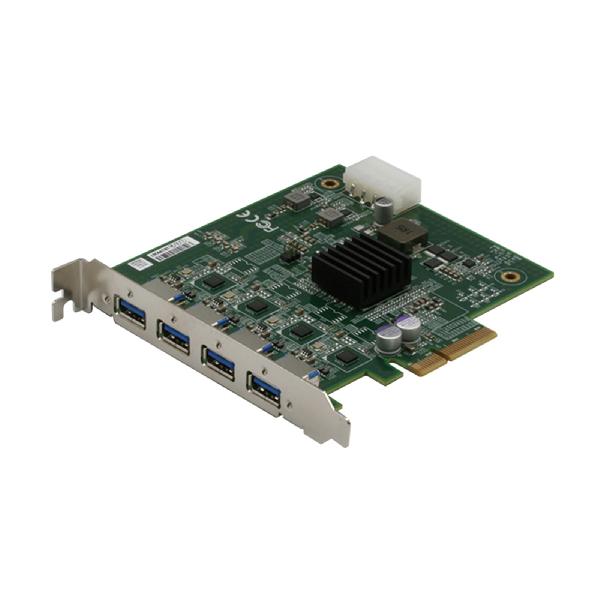

4-Port USB 3.2 Gen 1 PCI-E [x4] Frame Grabber Card

Product Feature

  • PCI-Express® [x4] Gen. 2 Compliant
  • 4 Independent USB 3.2 Gen 1 Host Controller
  • Supports Bandwidth 5 Gb/s for Each Port
  • Supports Locakable USB Connector

4-Port USB 3.2 Gen 1 PCI-E [x4] Frame Grabber Card

SYSTEM

BUS INTERFACEPCI-Express® [x4], Gen 2
PCI-Express Specification Revision 2.1 at 5GT/s
USB4 independent USB 3.2 Gen 1 host controllers
900mA @ 5V for each port
Compliant with USB 3.2 Gen 1 Specification Revision 1.0
4 downstream USB ports support SS/HS/FS/LS data rates
(5Gbps/480Mbps/12Mbps/1.5Mbps)
USB CONNECTOR4 USB 3.2 Gen 1 Type-A connectors with lockable screw threads
ETHERNET—
OS SUPPORTWindows® 10, Windows® 8.1 (32/64-bit), Windows® 7(32/64-bit) Linux

POWER SUPPLY

POWER REQUIREMENT5-12V from external IDE 4-pin power connector

MECHANICAL

DIMENSION4.72" x 4.21" (120mm x 107mm)

ENVIRONMENTAL

OPERATING TEMPERATURE0°F ~ 140°F (0°C ~ 60°C)
(according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices)
STORAGE TEMPERATURE-49°F ~ 185°F (-45°C ~ 80°C)
STORAGE HUMIDITY5 ~ 95% @ 40°C, non-condensing
