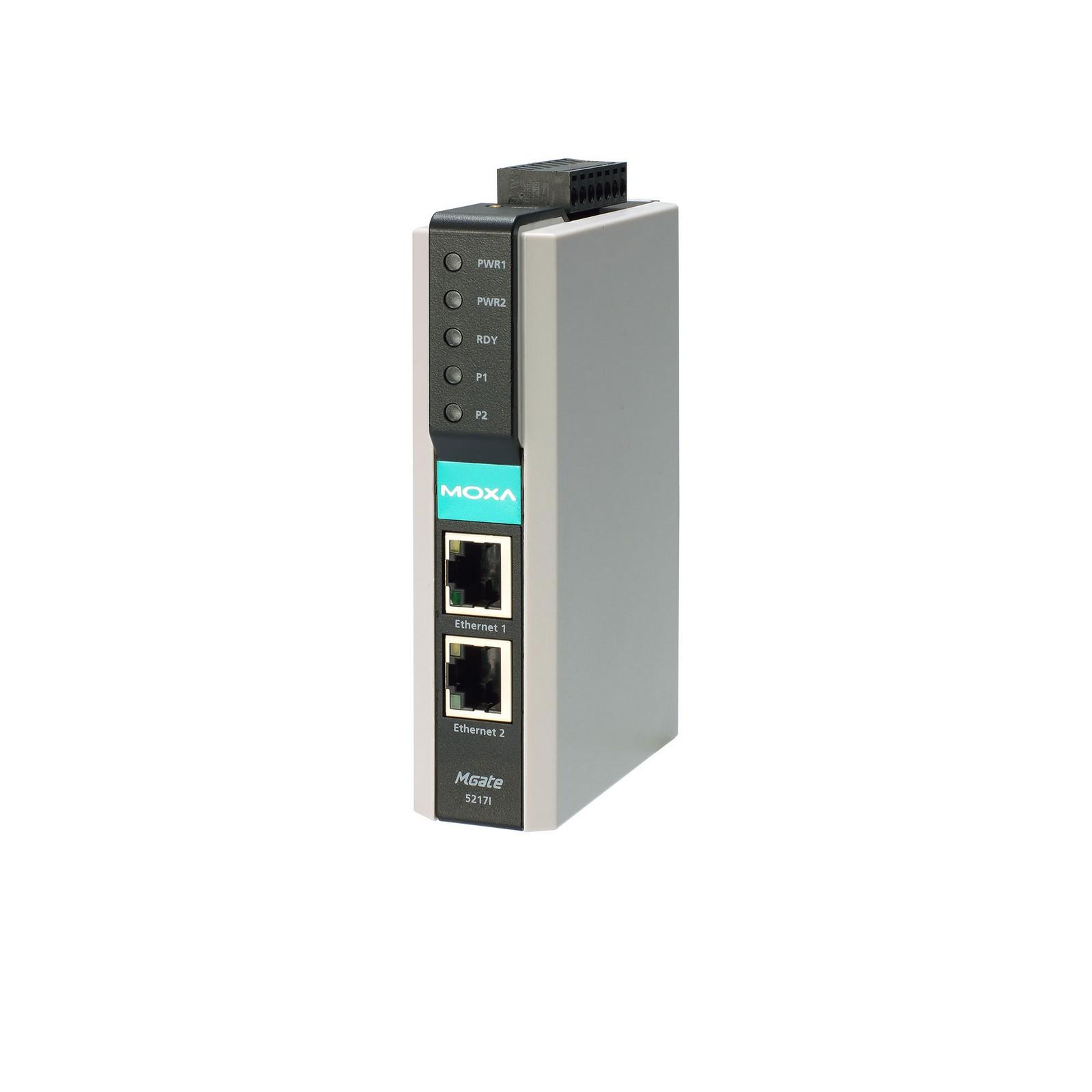

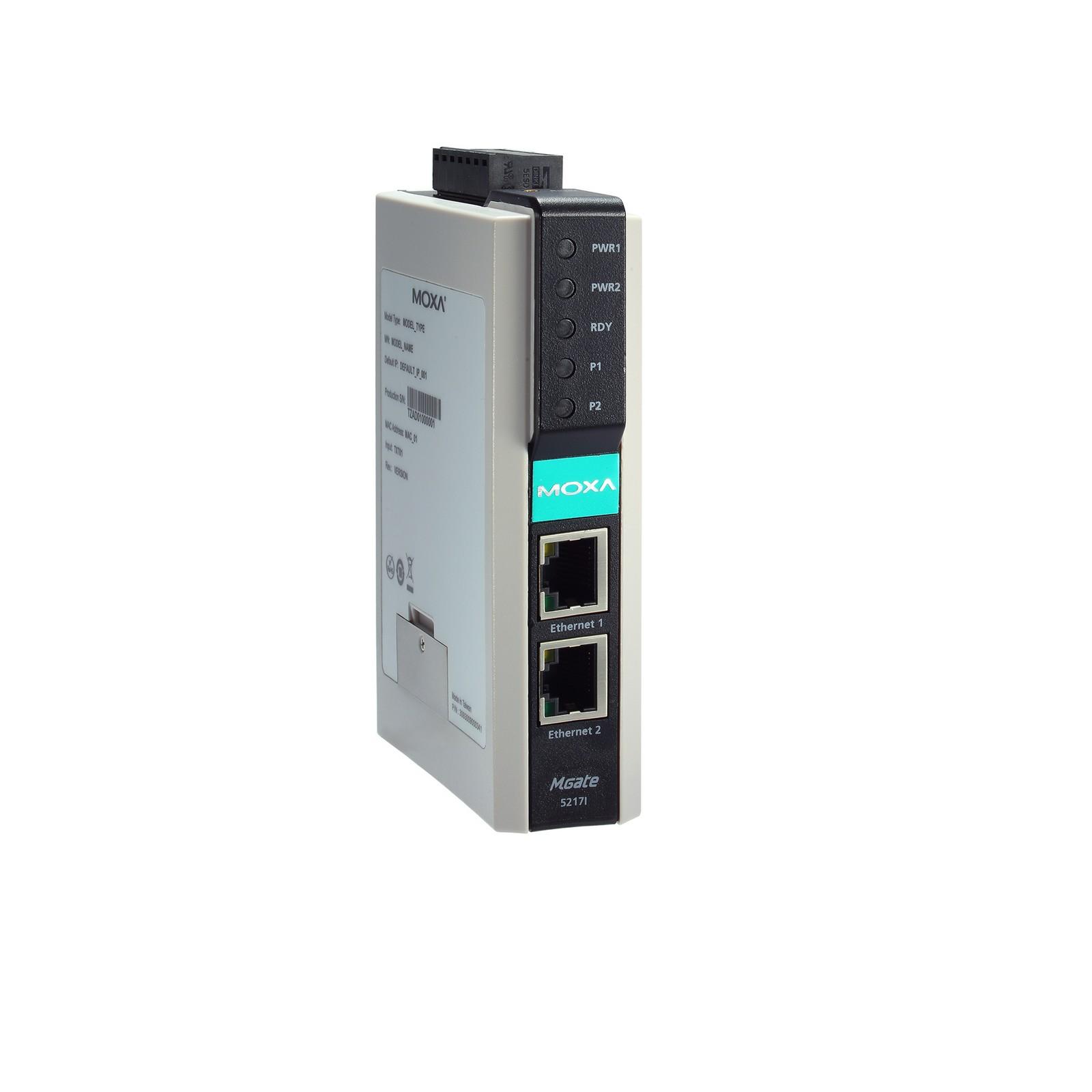

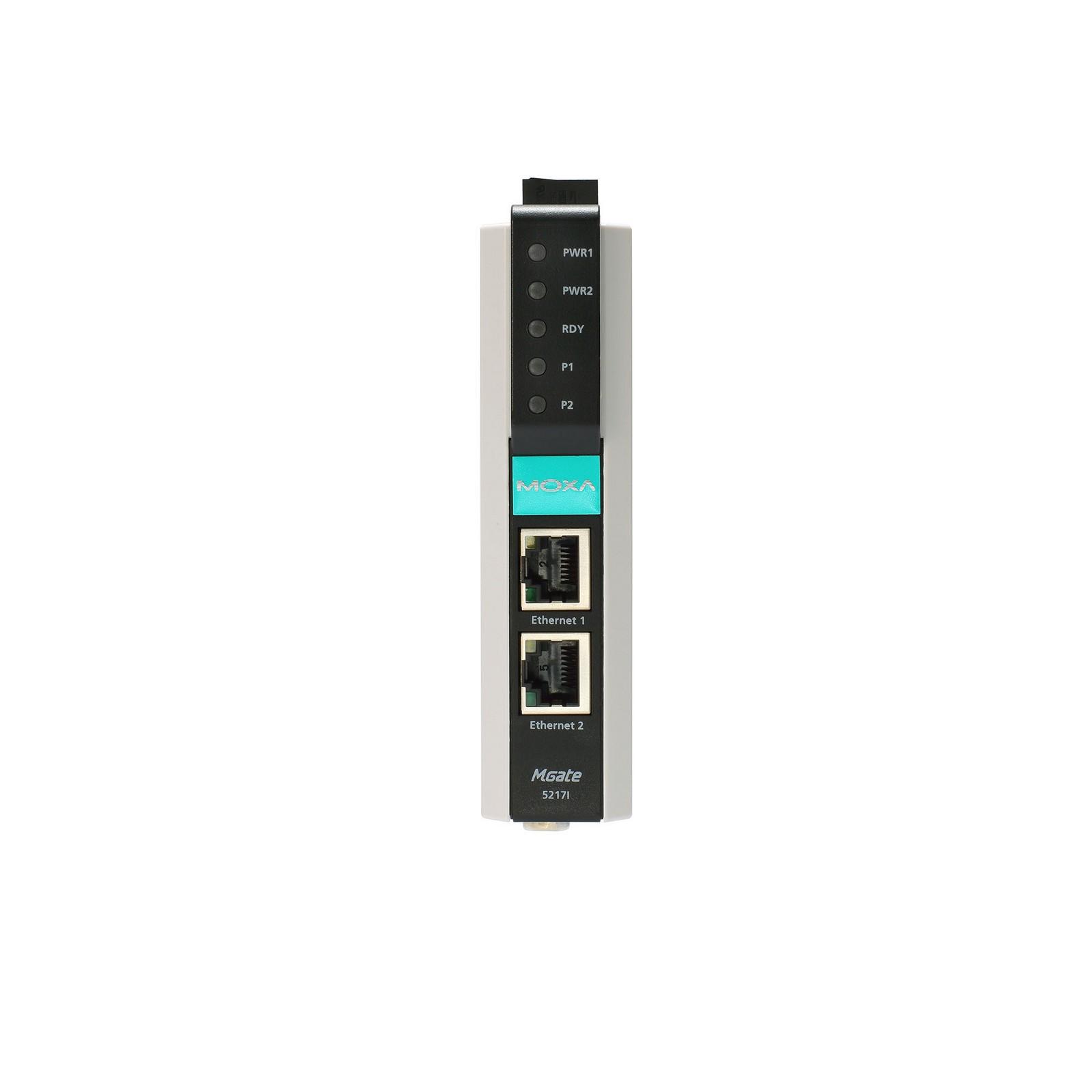

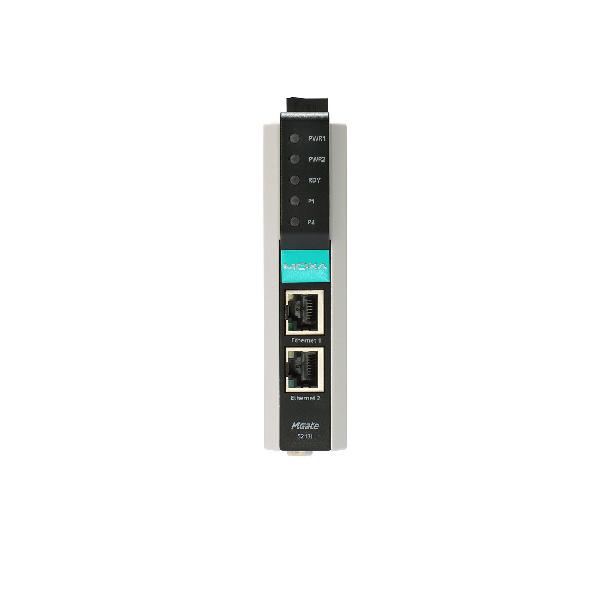

MGate 5217 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Protocol Gateways  >   Modbus TCP Gateways

2-port Modbus RTU/ASCII/TCP-to-BACnet/IP gateways

Product Feature

  • Supports Modbus RTU/ASCII/TCP master/client
  • Supports BACnet/IP slave/server
  • Supports 600 points and 1200 points models
  • Supports COV for fast data communication
  • Supports virtual nodes designed to make each Modbus device as a separate BACnet/IP device
  • Configures Modbus commands quickly by editing an Excel spreadsheet
  • Embedded traffic and diagnostic information for easy troubleshooting
  • Built-in Ethernet cascading for easy wiring
  • Industrial design with -40 to 75°C operating temperature range
  • Serial port with 2 kV isolation protection
  • Dual AC/DC power supply
  • 5-year warranty
  • Security features based on IEC 62443

Introduction

The MGate 5217I Series comprise 2-port BACnet gateways that can convert Modbus RTU/ACSII/TCP to BACnet/IP protocol. Depending on the size and the scale of the network, the gateways provide 600-point and 1200-point models. All models are rugged, DIN-rail mountable, operate in wide temperatures, and offer built-in 2kV isolation for serial signals.



Easy Configuration Via Web Console and Excel Spreadsheet

The MGate 5217I Series comes with an intuitive UI design to make configuration easy. With that, you can easily access protocol conversion modes and finish the configuration in a few steps instead of installing an additional engineering utility in your computer. Besides, the MGate can generate Modbus commands by importing an Excel spreadsheet, which makes it easy to edit Modbus commands.



Modbus and BACnet/IP Protocol Traffic Monitor and Diagnostics

The MGate 5217I gateways support Modbus and BACnet/IP Protocol Traffic Monitor and Diagnostics for easy troubleshooting, especially during the installation stage. Communication issues could be caused by incorrect software parameters, such as the wrong slave ID and register address, or an incorrect command configuration. With Diagnostics, you can check the communication status and view values at a glance. With Modbus/BACnet Protocol Traffic Monitor, you can check the captured data and easily identify the root cause.



Security Features Based on IEC 62443

Using network devices that are IEC 62443-4-2 compliant and equipped with basic security capabilities is an effective precautionary measure to ward off cyberattacks. The MGate 5217I Series is capable of several basic security capabilities, including password cracking defense, sniffer and data breach prevention, whitelisting, and the account management.

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
2
Auto MDI/MDI-X connection
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Industrial ProtocolsModbus TCP Client (Master), BACnet/IP Server (Slave)
Configuration OptionsWeb Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console
ManagementARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap,
SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client
MIBRFC1213, RFC1317
Time ManagementNTP Client

Serial Interface

No. of Ports2
ConnectorDB9 male
Serial StandardsRS-232/422/485
Baudrate50 bps to 921.6 kbps
Data Bits7, 8
ParityNone, Even, Odd, Space, Mark
Stop Bits1, 2
Flow ControlRTS Toggle (RS-232 only), RTS/CTS, DTR/DSR
RS-485 Data Direction ControlADDC® (automatic data direction control)
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
Terminator for RS-485120 ohms
Isolation2 kV (built-in)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial ProtocolsModbus RTU/ASCII Master

Modbus RTU/ASCII

ModeMaster
Functions Supported1, 2, 3, 4, 5, 6, 16
Max. No. of CommandsMGate 5217I-600-T: 600 (up to 300 commands/per serial port)
MGate 5217I-1200-T: 1200 (up to 600 commands/per serial port)

Modbus TCP

ModeClient (Master)
Functions Supported1, 2, 3, 4, 5, 6, 16
Max. No. of Server Connections32
Max. No. of CommandsMGate 5217I-600-T: 600
MGate 5217I-1200-T: 1200

BACnet/IP

ModeServer (Slave)
Memory SizeMGate 5217I-600-T: 600 points
MGate 5217I-1200-T: 1200 points
Supported BACnet ObjectBinary Input
Binary Output
Binary Value
Analog Input
Analog Output
Analog Value
Multi-state Input
Multi-state Output
Multi-state Value
Integer Value
Positive Integer Value

Power Parameters

Input Voltage24 VAC, 12 to 48 VDC
Input Current300 mA @ 24 VAC
510 mA @ 12 VDC
Power ConnectorScrew-fastened Euroblock terminal

Relays

Contact Current RatingResistive load: 1 A @ 30 VDC

Physical Characteristics

HousingPlastic
IP RatingIP30
Dimensions (without ears)29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
Dimensions (with ears)29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
Weight380 g (0.84 lb)

Environmental Limits

Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/35
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
SafetyUL 62368-1, IEC 62368-1
FreefallIEC 60068-2-32
ShockIEC 60068-2-27
VibrationIEC 60068-2-6, IEC 60068-2-64

MTBF

Time1,277,500 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for MGate 5217 Series Datasheet V1.0 18 December 2020

MGate 5217I-600-T

Data Points 600

MGate 5217I-1200-T

Data Points 1200
