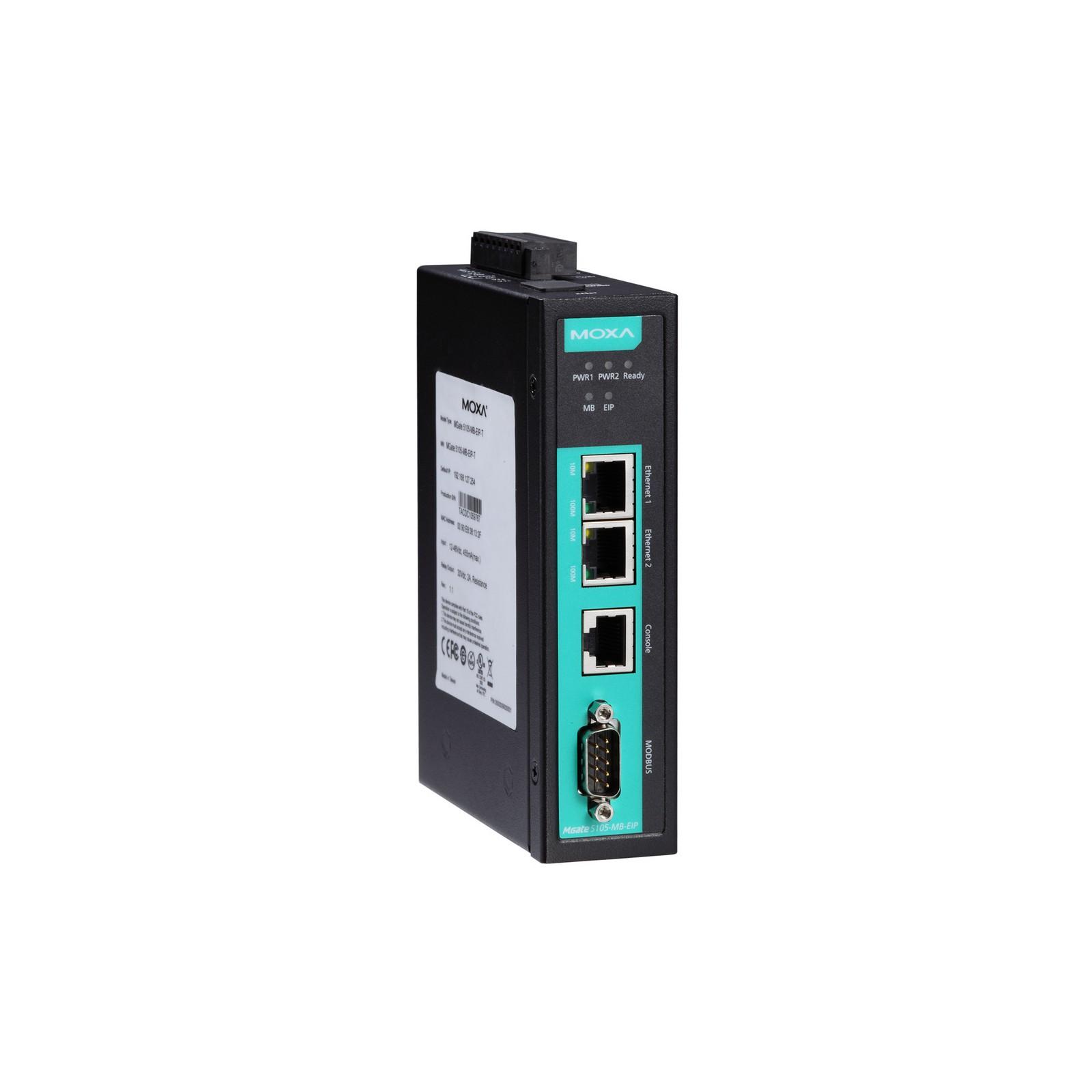

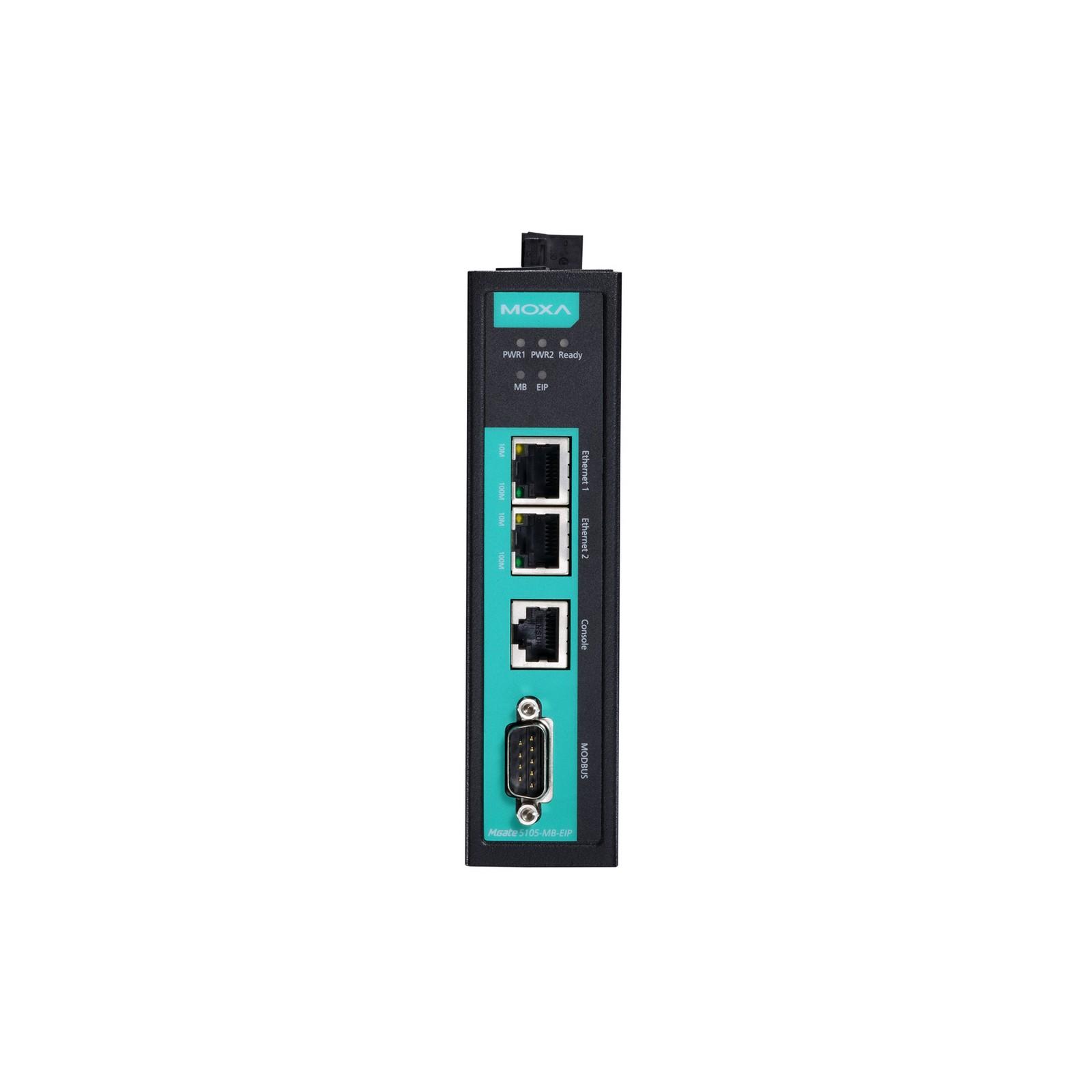

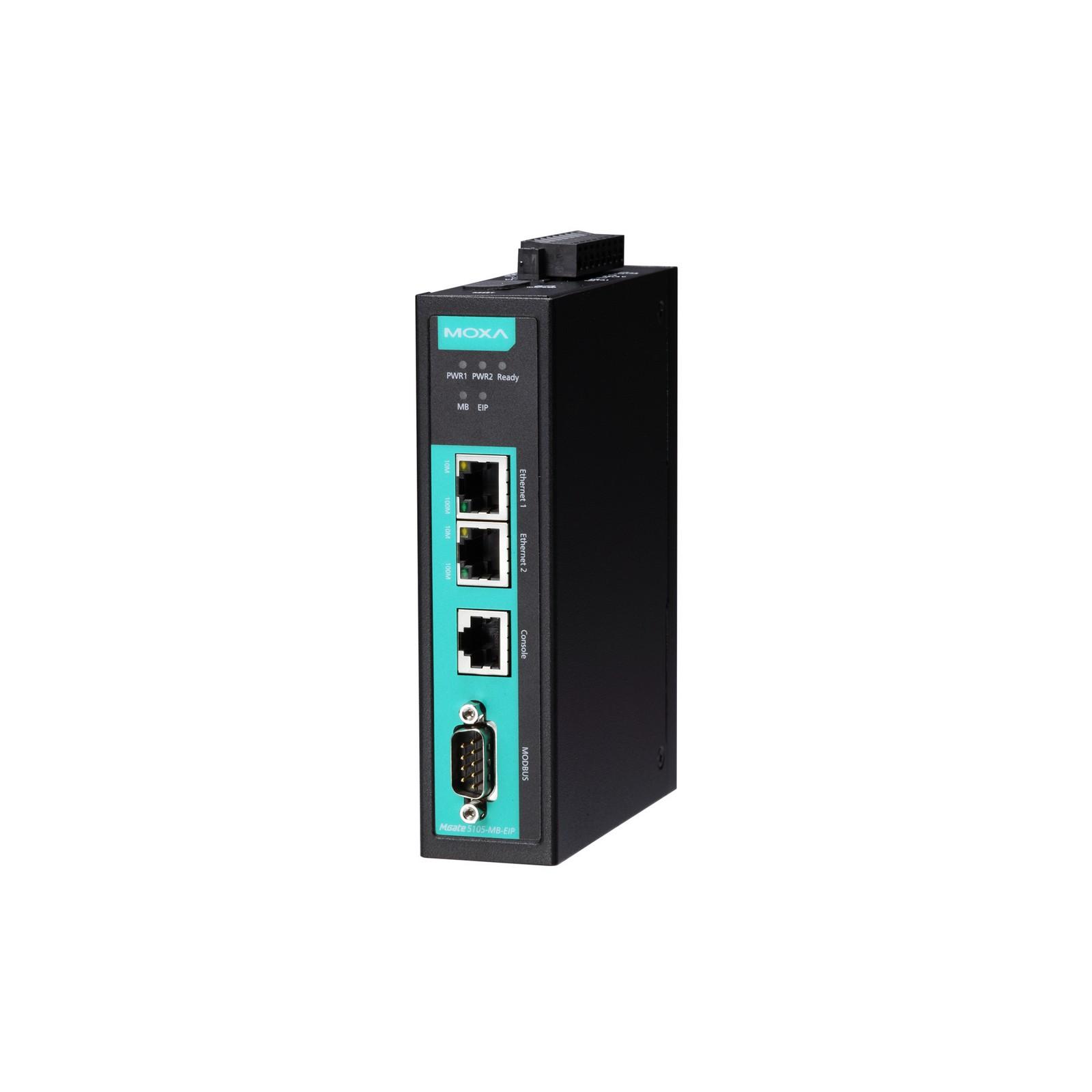

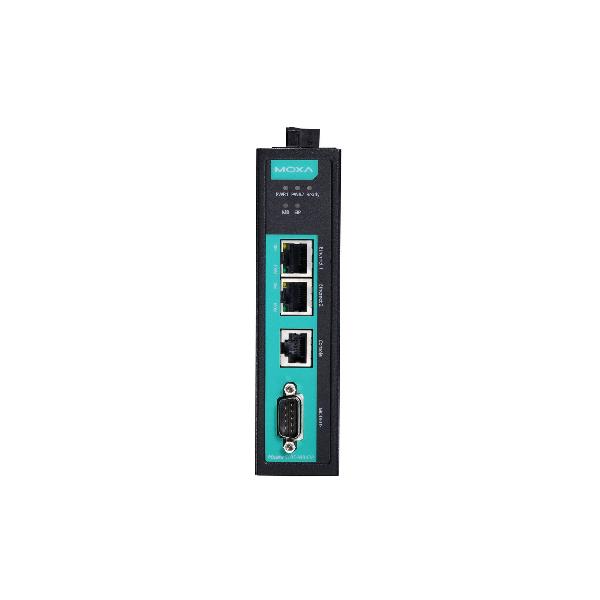

MGate 5105-MB-EIP Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Protocol Gateways  >   Modbus TCP Gateways

1-port MQTT-supported Modbus RTU/ASCII/TCP-to-EtherNet/IP gateways

Product Feature

  • Connects fieldbus data to cloud through generic MQTT
  • Supports MQTT connection with built-in device SDKs to Azure/Alibaba Cloud
  • Protocol conversion between Modbus and EtherNet/IP
  • Supports EtherNet/IP Scanner/Adapter
  • Supports Modbus RTU/ASCII/TCP master/client and slave/server
  • Supports MQTT connection with TLS and certificate in JSON and Raw data format
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting and cloud data transmission for cost evaluation and analysis
  • microSD card for configuration backup/duplication and event logs, and data buffering when cloud connection is lost
  • -40 to 75°C wide operating temperature models available
  • Serial port with 2 kV isolation protection
  • Security features based on IEC 62443

Introduction

The MGate 5105-MB-EIP is an industrial Ethernet gateway for Modbus RTU/ASCII/TCP and EtherNet/IP network communications with IIoT applications, based on MQTT or third-party cloud services, such as Azure and Alibaba Cloud. To integrate existing Modbus devices onto an EtherNet/IP network, use the MGate 5105-MB-EIP as a Modbus master or slave to collect data and exchange data with EtherNet/IP devices. The latest exchange data will be stored in the gateway as well. The gateway converts stored Modbus data into EtherNet/IP packets so the EtherNet/IP scanner can control or monitor Modbus devices. The MQTT standard with supported cloud solutions on the MGate 5105-MB-EIP leverages advanced security, configuration, and diagnostics to troubleshoot technologies to deliver scalable and extensible solutions that are suitable for remote monitoring applications such as energy management and assets management.



Configuration Backup via microSD Card

The MGate 5105-MB-EIP is equipped with a microSD card slot. A microSD card can be used to back up both the system configuration and system log, and can be used to conveniently copy the same configuration to several MGate 5105-MP-EIP units. The configuration file stored in the microSD card will be copied to the MGate itself when the system is rebooted.



Effortless Configuration and Troubleshooting via Web Console

The MGate 5105-MB-EIP also provides a web console to make configuration easy without having to install an extra utility. Simply log in as an administrator to access all settings, or as a general user with read-only permission. Besides configuring basic protocol settings, you can use the web console to monitor I/O data values and transfers. In particular, I/O Data Mapping shows data addresses for both protocols in the gateway’s memory, and I/O Data View allows you to track data values for online nodes. Moreover, diagnostics and communication analysis for each protocol can also provide helpful information for troubleshooting.



Redundant Power Inputs

The MGate 5105-MB-EIP has dual power inputs for greater reliability. The power inputs allow simultaneous connection to 2 live DC power sources, so that continuous operation is provided even if one power source fails. The higher level of reliability makes these advanced Modbus-to-EtherNet/IP gateways ideal for demanding industrial applications.

Ethernet Interface

10/100BaseT(X) Ports (RJ45
connector)
2
Auto MDI/MDI-X connection
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Industrial ProtocolsModbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP
Scanner, EtherNet/IP Adapter, MQTT
Configuration OptionsWeb Console (HTTP/HTTPS), Device Search Utility (DSU), MGate
Manager, Telnet Console
ManagementARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap,
SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIBRFC1213, RFC1317
Time ManagementNTP Client

Serial Interface

Console PortRS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
No. of Ports1
ConnectorDB9 male
Serial StandardsRS-232/422/485
Baudrate50 bps to 921.6 kbps
Data Bits7, 8
ParityNone, Even, Odd, Space, Mark
Stop Bits1, 2
Flow ControlRTS Toggle (RS-232 only), RTS/CTS
RS-485 Data Direction ControlADDC® (automatic data direction control)
Pull High/Low Resistor for RS-4851 kilo-ohm, 150 kilo-ohms
Terminator for RS-485120 ohms
Isolation2 kV (built-in)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Configuration OptionsSerial Console
Industrial ProtocolsModbus RTU/ASCII Master, Modbus RTU/ASCII Slave

Modbus RTU/ASCII

ModeMaster, Slave
Functions Supported1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Commands100
Input Data Size2048 bytes
Output Data Size2048 bytes

Modbus TCP

ModeClient (Master), Server (Slave)
Functions Supported1, 2, 3, 4, 5, 6, 15, 16, 23
Max. No. of Client Connections16
Max. No. of Server Connections32
Max. No. of Commands100
Input Data Size2048 bytes
Output Data Size2048 bytes

EtherNet/IP

ModeScanner, Adapter
CIP Objects SupportedIdentity, Message Router, Assembly, Connection Manager, TCP/IP interface,
Ethernet link, Port
Max. No. of Scanner Connections16 (for read-only), 1 (for read/write)
Max. No. of Adapter Connections100
Input Data Size496 bytes
Output Data Size496 bytes

MQTT

ModePublisher/Subscriber of MQTT, Azure IoT Hub Device, Alibaba IoT Platform
Device
Version Supportedv3.1.1
QoS LevelQoS 0,1,2
Secure TransmissionTLS (1.0, 1.1, 1.2) encryption with user's root CA, Client certificate, Private
key
Max. No. of Data Tag300 data tags
Max. No. of Message20 messages
MQTT General FeaturesKeep Alive, Retain Message, Last Will Message, Clean Session

Memory

microSD SlotUp to 32 GB (SD 2.0 compatible; Data buffering up to 2 GB)

Power Parameters

Input Voltage12 to 48 VDC
Input Current455 mA @ 12 VDC
Power ConnectorScrew-fastened Euroblock terminal

Relays

Contact Current RatingResistive load: 2 A @ 30 VDC

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Weight507 g (1.12 lb)

Environmental Limits

Operating TemperatureMGate 5105-MB-EIP: 0 to 60°C (32 to 140°F)
MGate 5105-MB-EIP-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package
included)
-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyEN 60950-1, UL 508
EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class B
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
Hazardous LocationsATEX, Class I Division 2, IECEx
FreefallIEC 60068-2-32
ShockIEC 60068-2-27
VibrationIEC 60068-2-6, IEC 60068-2-64

MTBF

Time859,422 hrs
StandardsTelcordia SR332

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty
Name Type Version Release Date
Datasheet for MGate 5105-MB-EIP Series Datasheet V1.1 31 March 2019

MGate 5105-MB-EIP

Operating Temp. 0 to 60°C

MGate 5105-MB-EIP-T

Operating Temp. -40 to 75°C
