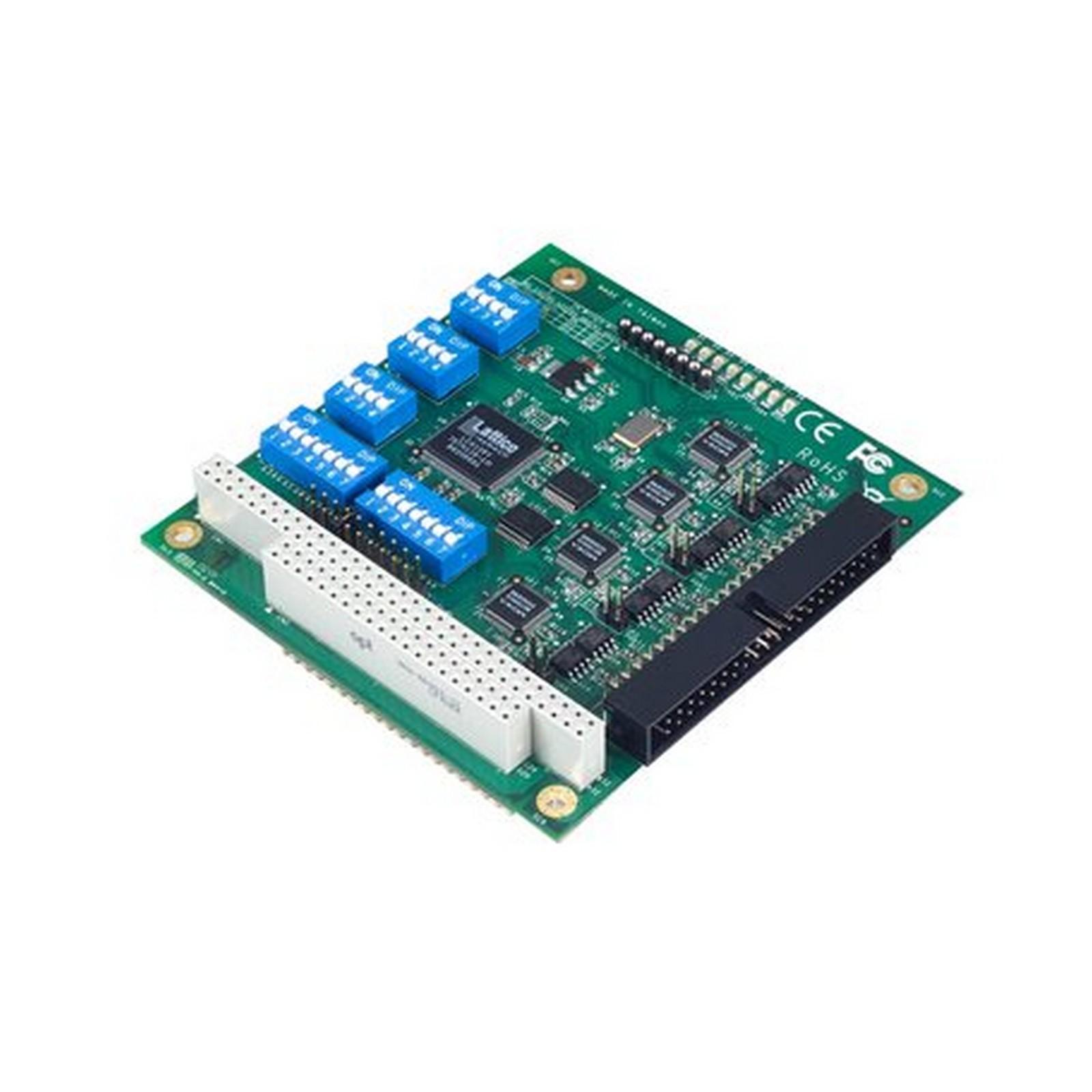

4-port RS-232/422/485 PC/104 modules

Product Feature

  • 921.6 kbps maximum baudrate for fast data transmission
  • On-chip hardware and software flow control
  • IRQ settings, I/O settings, and serial interface are jumper and DIP switch selectable
  • Onboard Tx and Rx LED indicators for each port
  • Supports Windows CE 5.0/6.0 and Windows XP Embedded operating systems
  • Wide-temperature model available for -40 to 85°C environments

The CA-114 PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 4 RS-232/422/485 ports, and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices, and versatile driver support makes the modules suitable for a wide range of applications.

Serial Interface

Comm. Controller16C550C or compatible x 4
BusPC/104 bus
Connector40-pin box header
DIP SwitchesI/O base address, Interrupt vector, Serial interface
IRQ3, 4, 5, 6, 7, 9, 10, 11, 12, 15 (shared for all ports)
FIFO64 bytes
Max. No. of Boards per PC8
No. of Ports4
Serial StandardsRS-232, RS-422, RS-485
Baudrate50 bps to 921.6 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityNone, Even, Odd, Space, Mark
Flow ControlNone, RTS/CTS, XON/XOFF

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND

Serial Software Features

Windows DriversDOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux DriversLinux kernel 2.4.x, Linux kernel 2.6.x

Power Parameters

Input Current305 mA @ 5 VDC
Input Voltage5 VDC

Physical Characteristics

Dimensions90 x 96 mm (3.54 x 3.78 in)

LED Interface

LED IndicatorsBuilt-in Tx, Rx LEDs for each port

Environmental Limits

Operating TemperatureCA-114: 0 to 55°C (32 to 131°F)
CA-114-T: -40 to 85°C (-40 to 185°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

EMCEN 55032/24
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
IEC 61000-4-5 Surge: Power: 0.5 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
Environmental TestingIEC 60068-2-1
IEC 60068-2-2
IEC 60068-2-3
IEC 60068-2-14
SafetyEN 60950-1, UL 60950-1
VibrationIEC 60068-2-6

Declaration

Green ProductRoHS, CRoHS, WEEE

MTBF

Time630,997 hrs
StandardsTelcordia (Bellcore), GB

Warranty

Warranty Period5 years
DetailsSee www.moxa.com/warranty



Name Type Version Release Date
CA-114 Series Datasheet 1.0 18 March 2021

CA-114

Serial Bus PC/104
Serial Standards RS-232/422/485
No. of Serial Ports 4
Operating Temp. 0 to 55°C

CA-114-T

Serial Bus PC/104
Serial Standards RS-232/422/485
No. of Serial Ports 4
Operating Temp. -40 to 85°C
