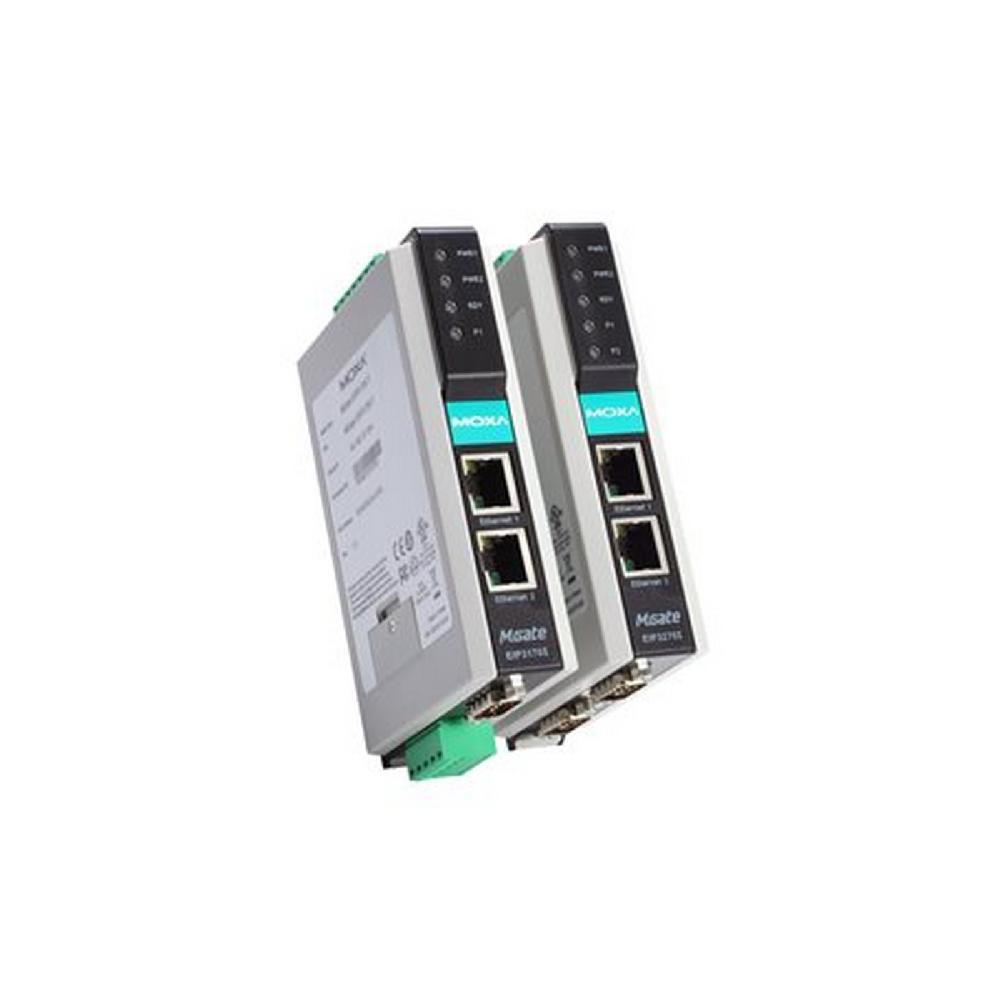

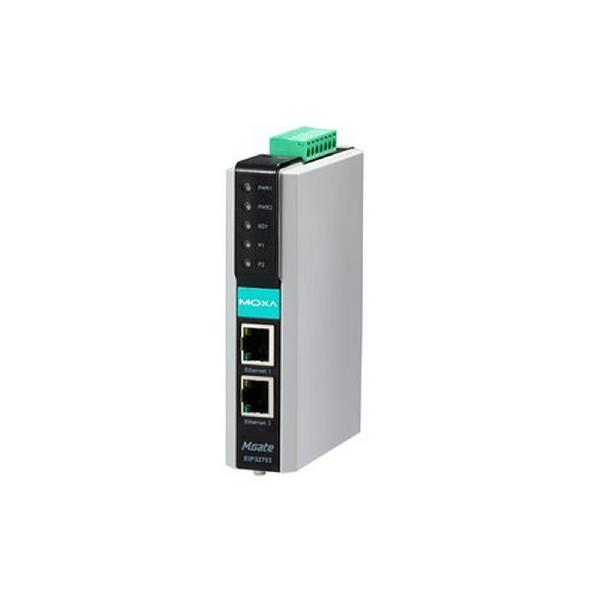

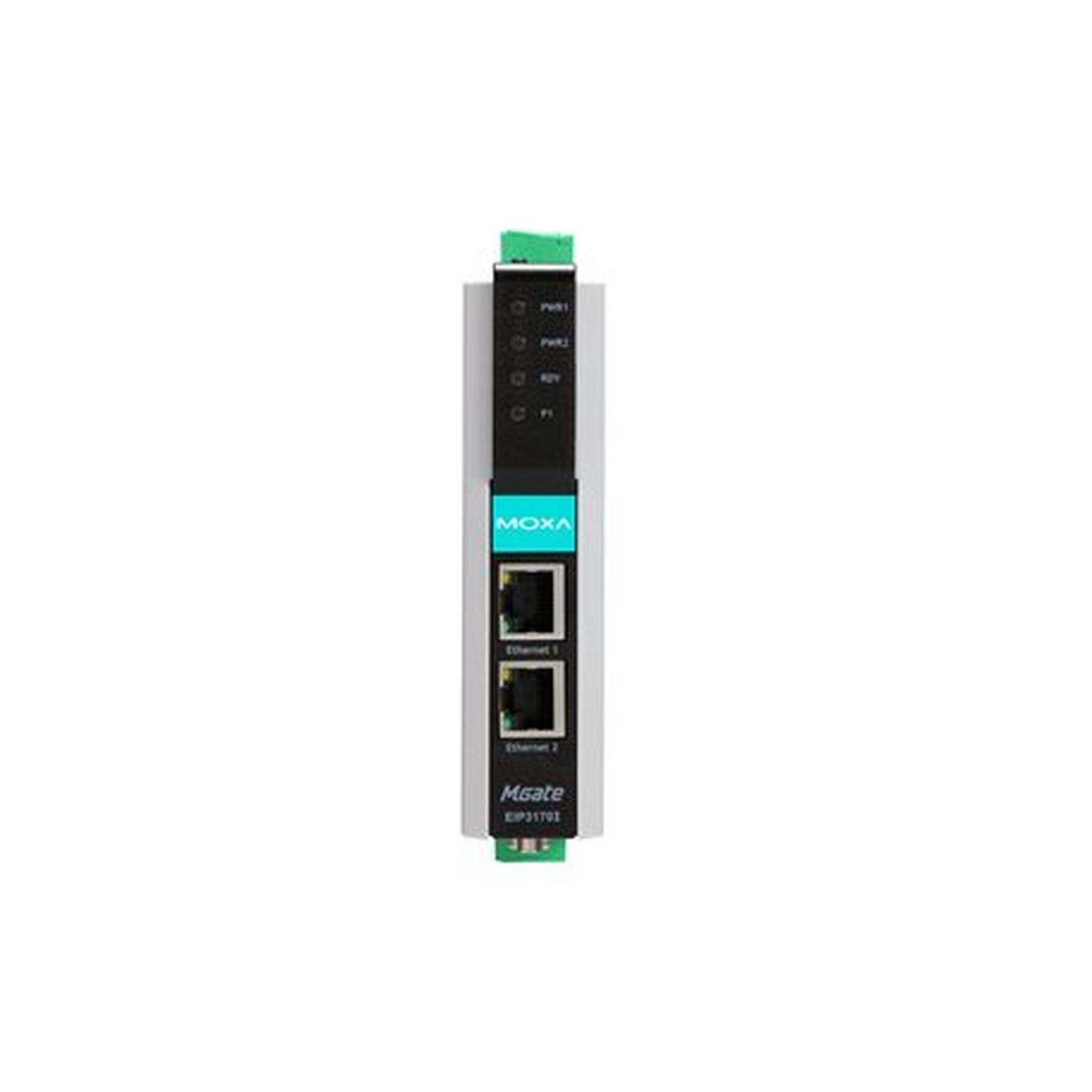

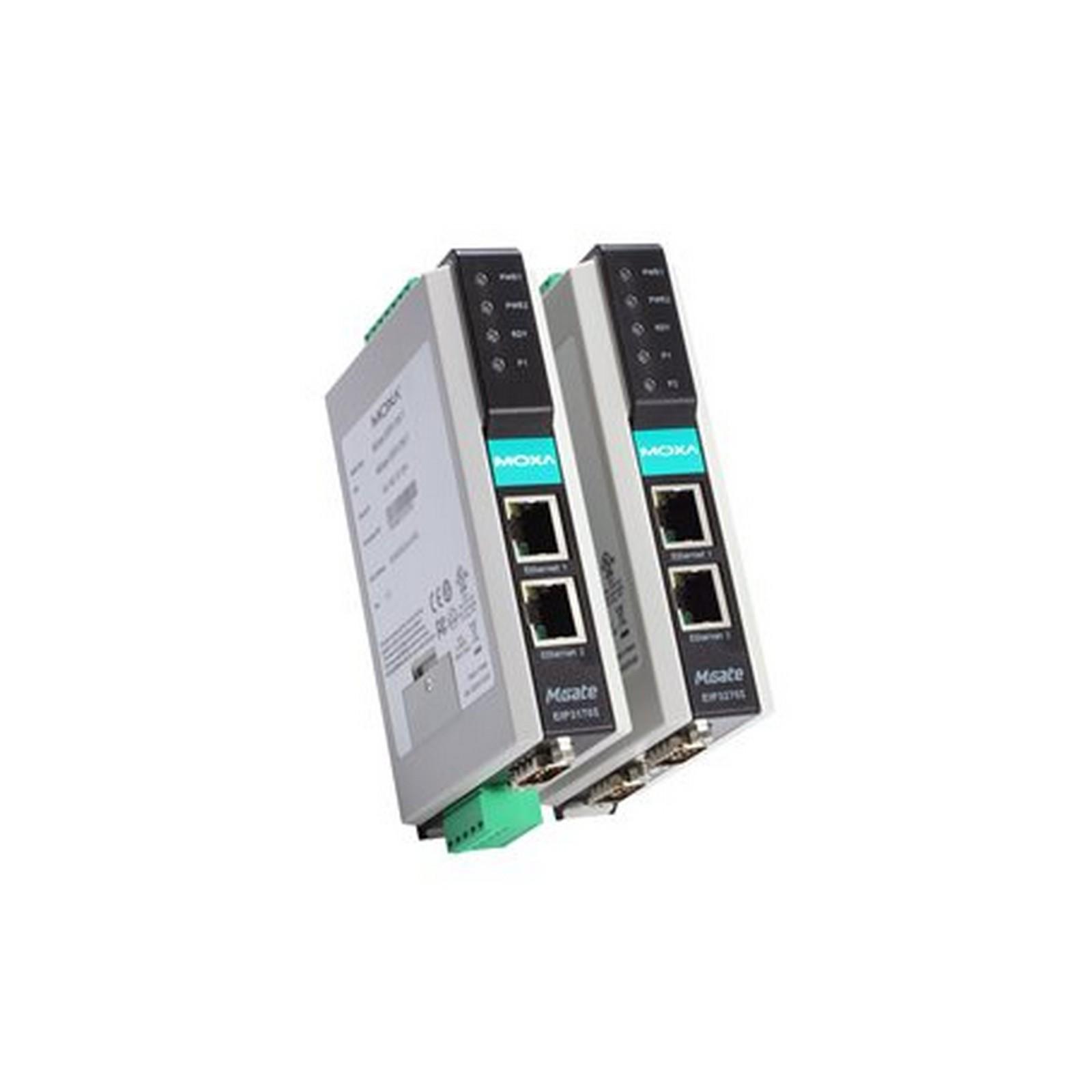

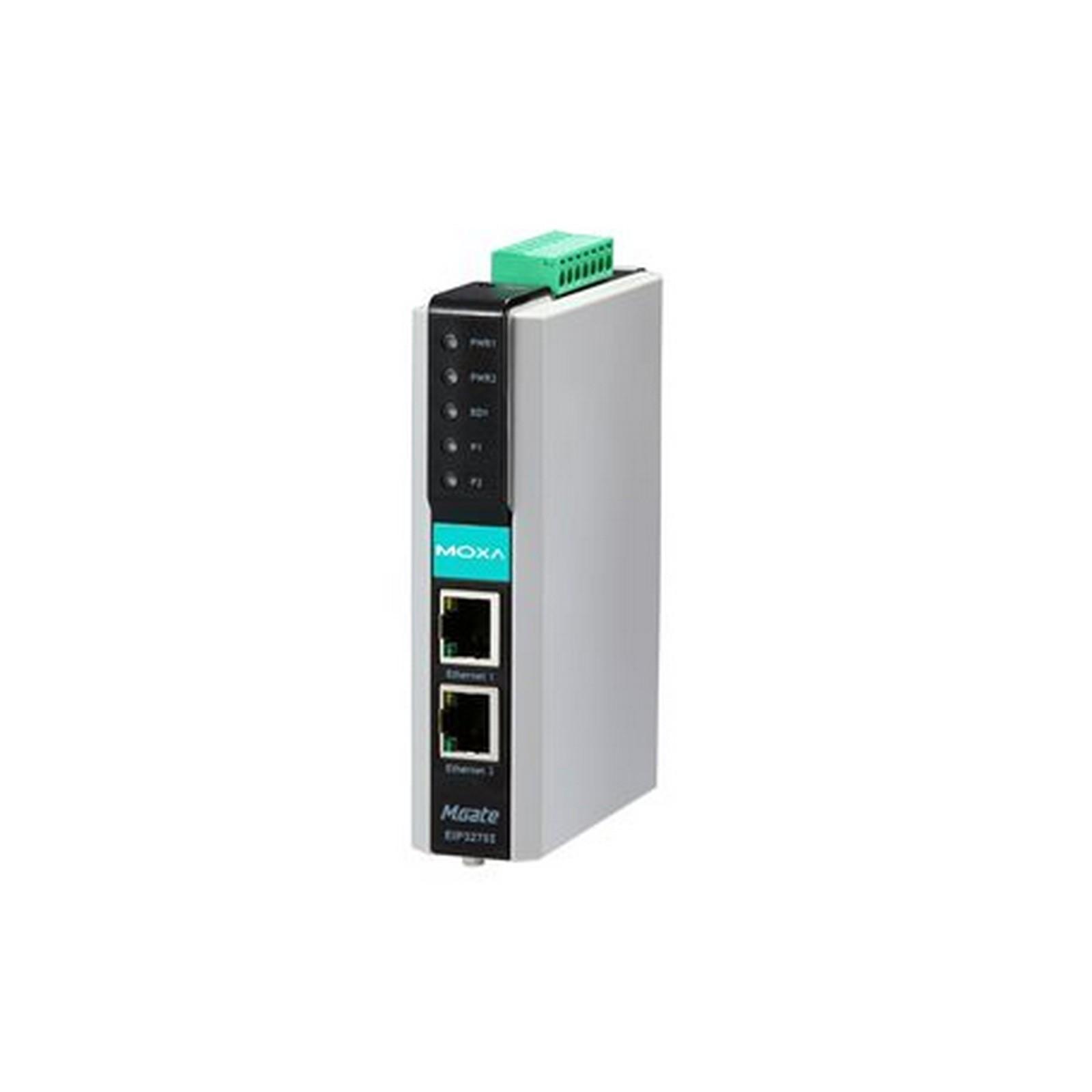

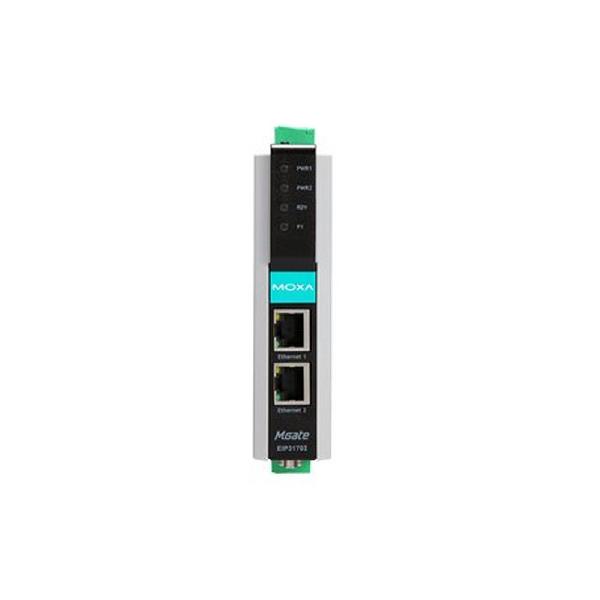

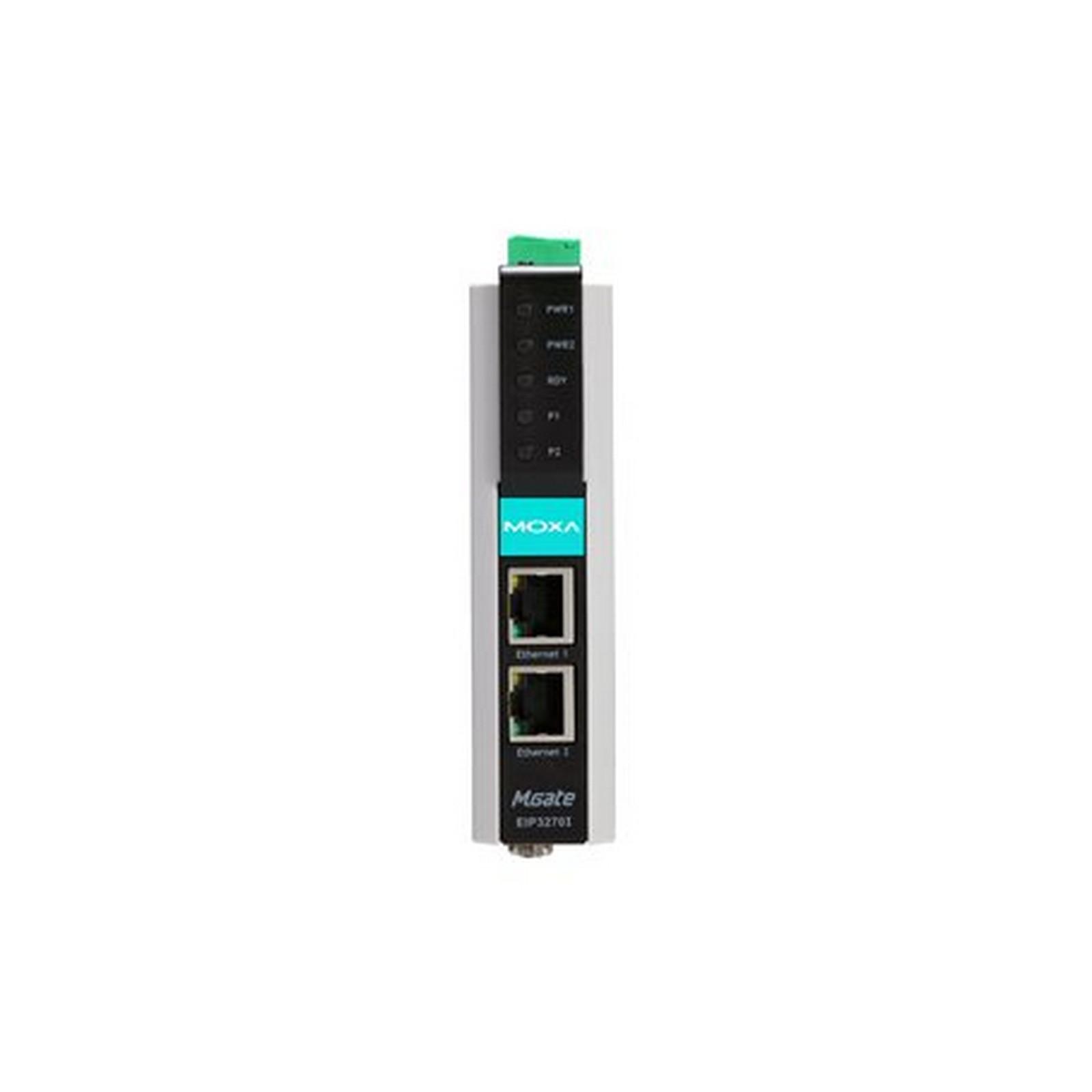

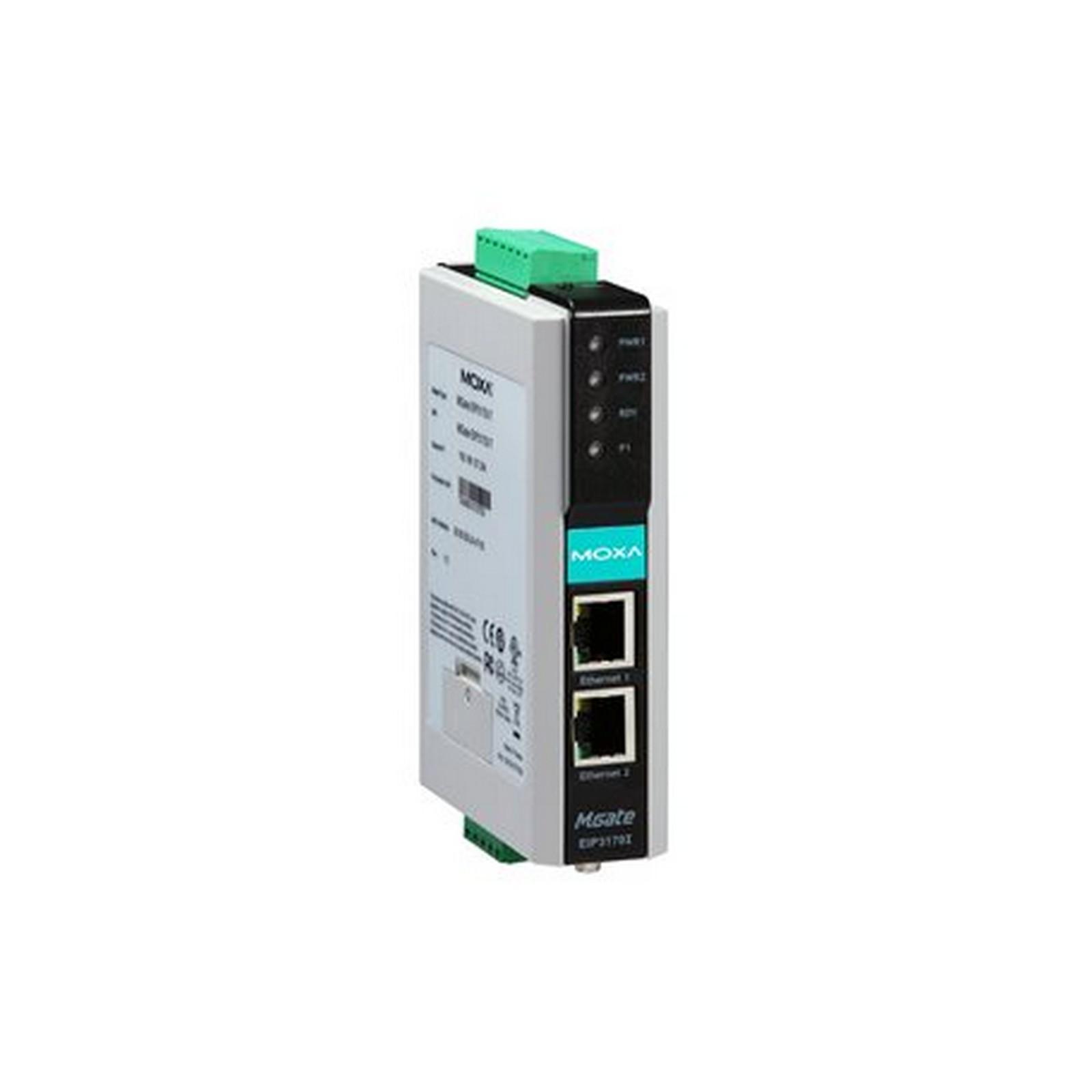

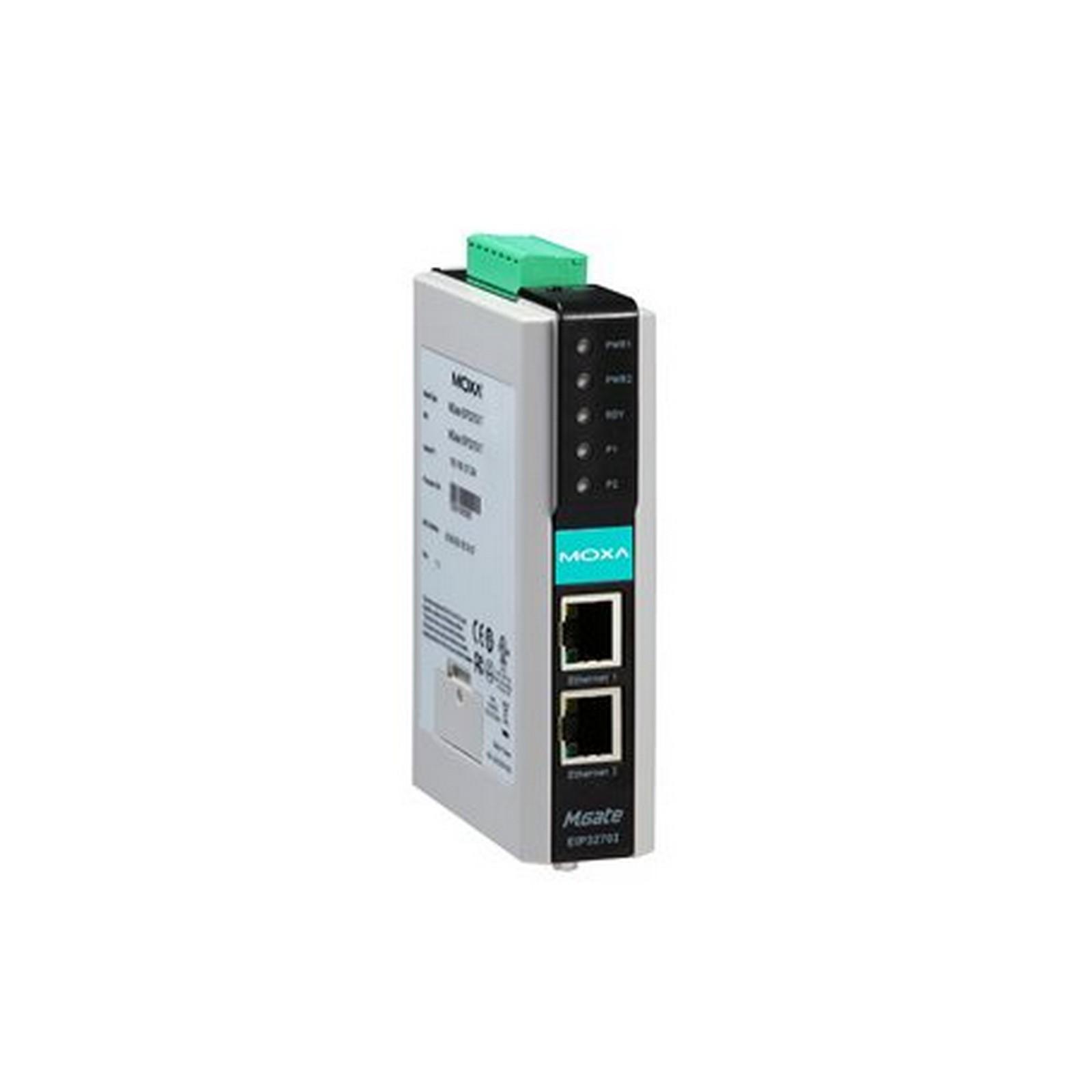

MGate EIP3170/EIP3270 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Protocol Gateways  >   EtherNet/IP Gateways

1 and 2-port EtherNet/IP-to-DF1 gateways

Product Feature

  • PCCC objects for Rockwell Automation networks supported
  • Use ProCOM to implement control via COM port mapping
  • 8 simultaneous EtherNet/IP client/server pairs with up to 16 queued requests
  • Serial redirector keeps the original serial master and slave connection while connecting devices to the Ethernet
  • EtherNet/IP and DF1 traffic monitor for easy troubleshooting
  • Redundant dual DC power inputs
  • Built-in Ethernet cascading for easy wiring
  • -40 to 75°C wide operating temperature models available

Introduction

MGate™ EIP3000 gateways provide Ethernet/IP-to-DF1 protocol conversion for users who need to connect Allen Bradley PLCs to an EtherNet/IP network. With a number of innovative functions, the MGate™ Series overcomes the difficulties of connecting between legacy serial devices and SCADA software. Both 1 and 2-port gateways are available for use with different-sized control networks.



Protocol Conversion between DF1 and EtherNet/IP

By supporting PCCC objects on CIP, the MGate™ EIP3000 can communicate seamlessly with SCADA software such as RSLinx. For users who develop control software based on EtherNet/IP, the MGate EIP3000 offers the standard interface for connection.



Support for Multiple EtherNet/IP Connections

MGate™ EIP3000 gateways support up to 16 EtherNet/IP clients and servers simultaneously. Each client can send up to 16 requests at a time, and the multiple connection capability can help establish redundancy for more complex control systems.



Windows Utility for Easy Configuration and Traffic Monitoring

Moxa provides a user-friendly Windows utility with multi-language support. The utility supports a traffic monitoring function for EtherNet/IP and DF1 protocols, and not only logs events initiated by the gateway, but also records all commands and responses that pass through the gateway. The utility helps users determine the root cause of failures and performance bottlenecks.



MOXA





Serial Redirector Function Maintains Original Master/Slave Connections

The serial redirector function allows the commands of a serial master (command initiator) to be redirected to the serial slave (command executor) on another port. In addition, a serial master can operate simultaneously with EtherNet/IP masters without changing the DF1 architecture or software. With the serial redirector function, MGate™ EIP3000 gateways can establish redundant control of legacy slave devices that were originally designed to be controlled by a single serial master.



ProCOM Implements Control via COM Port Mapping

Each MGate™ EIP3000 gateway supports virtual serial ports for the remote PC. You can connect to the MGate™ EIP3000 through the COM port by using Moxa’s Real COM driver, with the actual physical connection over the Ethernet. The gateway supports up to four virtual COM port connections and offers greater flexibility when designing redundant control systems.



Pull High/Low Resistors and Terminator Selection

When using termination resistors to prevent serial signal reflection, it is important to set the pull high/low resistors correctly so that the electrical signal is not corrupted. Since no set of resistor values is universally compatible with all environments, the EIP3000 has DIP switches on the bottom panel for setting the termination and pull high/low resistor values.



Built-In Isolation

Complex device networks that incorporate high amperage devices could be subject to electrical signal distortion from electrical discharges, magnetic noise, or common mode transients. MGate™ Series products solve this problem by using built-in optical isolation.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)2
Auto MDI/MDI-X connection
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features


Industrial ProtocolsEthernet/IP (PCCC)
Configuration OptionsMGate Manager, Telnet Console
ManagementARP, DHCP Client, SNMPv1, TCP/IP, Telnet, UDP
MIBRFC1213, RFC1317

Serial Interface

No. of PortsMGate EIP3170 Series: 1
MGate EIP3270 Series: 2
ConnectorMGate EIP3170 Series: DB9 male for RS-232, Terminal block for RS-422/485
MGate EIP3270 Series: 2 x DB9 male
Serial StandardsRS-232, RS-422
Baudrate1200 bps to 921.6 kbps
Data Bits8
ParityNone, Even, Odd
Stop Bits1, 2
Flow ControlRTS/CTS, DTR/DSR (RS-232 only)
IsolationMGate EIP3170I: 2 kV (I models)
MGate EIP3170I-T: 2 kV (I models)
MGate EIP3270I: 2 kV (I models)

Serial Signals

RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

 Industrial Protocols DF1

DF1 (Transparent)

 ModeFull duplex
 Max. No. of Client Connections 8

Power Parameters

 Input Voltage 12 to 48 VDC
 Input CurrentMGate EIP3170/EIP3270/EIP3170-IEX/EIP3270-IEX Series: 435 mA @ 12 VDC
MGate EIP3170I/EIP3170I-IEX Series: 555 mA @ 12 VDC
MGate EIP3270I/EIP3270I-IEX: 510 mA @ 12 VDC

Relays

 Contact Current RatingResistive load: 1 A @ 30 VDC

Physical Characteristics

 Housing Plastic top cover, metal bottom plate
 IP Rating IP30
 Dimensions (with ears) 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)
 Dimensions (without ears) 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
 WeightMGate EIP3170 Series: 360 g (0.79 lb)
MGate EIP3270 Series: 380 g (0.84 lb)

Environmental Limits

 Operating TemperatureStandard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
 Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
 Ambient Relative Humidity 5 to 95% (non-condensing)

Standards and Certifications

 Safety EN 60950-1, UL 508
 EMC EN 55032/24
 EMI CISPR 32, FCC Part 15B Class A
 EMSIEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 4 kV
IEC 61000-4-6 CS: 10 V
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
 Hazardous Locations ATEX, Class I Division 2, IECEx
 MaritimeMGate EIP3170: DNV-GL, MGate EIP3170-T: DNV-GL, MGate EIP3170I: DNV-GL, MGate EIP3170I-T: DNV-GL
 Freefall IEC 60068-2-32
 Shock IEC 60068-2-27
 Vibration IEC 60068-2-6, IEC 60068-2-64

MTBF

 TimeMGate EIP3170: 1,344,456 hrs
MGate EIP3170-T: 1,344,456 hrs
MGate EIP3170-IEX: 1,344,456 hrs
MGate EIP3170-T-IEX: 1,344,456 hrs
MGate EIP3170I: 1,344,456 hrs
MGate EIP3170I-T: 1,344,456 hrs
MGate EIP3170I-IEX: 1,344,456 hrs
MGate EIP3170I-T-IEX: 1,344,456 hrs
MGate EIP3270: 1,204,573 hrs
MGate EIP3270-T: 1,204,573 hrs
MGate EIP3270-IEX: 1,204,573 hrs
MGate EIP3270-T-IEX: 1,204,573 hrs
MGate EIP3270I: 1,204,573 hrs
MGate EIP3270I-IEX: 1,204,573 hrs
 Standards Telcordia SR332

Warranty

 Warranty Period 5 years
 Details See www.moxa.com/warranty



Name Type Version Release Date
MGate EIP3170/EIP3270 Series Datasheet 1.0 25 March 2021

MGate EIP3170

No. of Serial Ports 1
Serial Connector RS-232: DB9 male RS-422/485: Terminal block
Serial Isolation -
Operating Temp. 0 to 60°C

MGate EIP3170I

No. of Serial Ports 1
Serial Connector RS-232: DB9 male RS-422/485: Terminal block
Serial Isolation 2 kV
Operating Temp. 0 to 60°C

MGate EIP3270

No. of Serial Ports 2
Serial Connector DB9 male
Serial Isolation -
Operating Temp. 0 to 60°C

MGate EIP3270I

No. of Serial Ports 2
Serial Connector DB9 male
Serial Isolation 2 kV
Operating Temp. 0 to 60°C

MGate EIP3170-T

No. of Serial Ports 1
Serial Connector RS-232: DB9 male RS-422/485: Terminal block
Serial Isolation -
Operating Temp. -40 to 75°C

MGate EIP3170I-T

No. of Serial Ports 1
Serial Connector RS-232: DB9 male RS-422/485: Terminal block
Serial Isolation 2 kV
Operating Temp. -40 to 75°C

MGate EIP3270-T

No. of Serial Ports 2
Serial Connector DB9 male
Serial Isolation -
Operating Temp. -40 to 75°C
