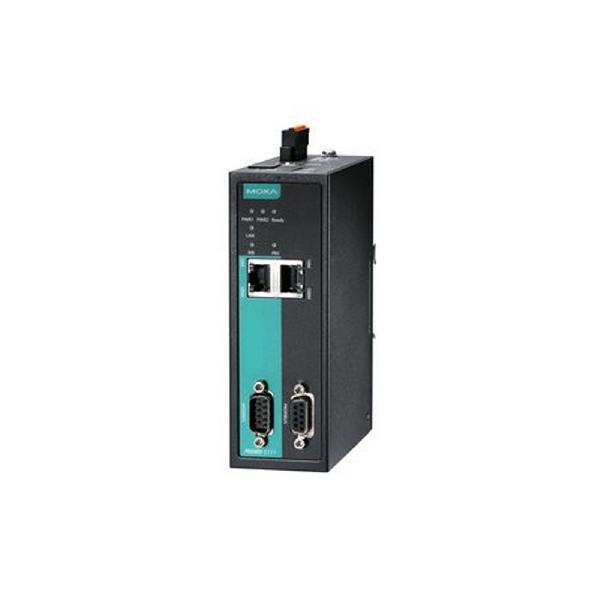

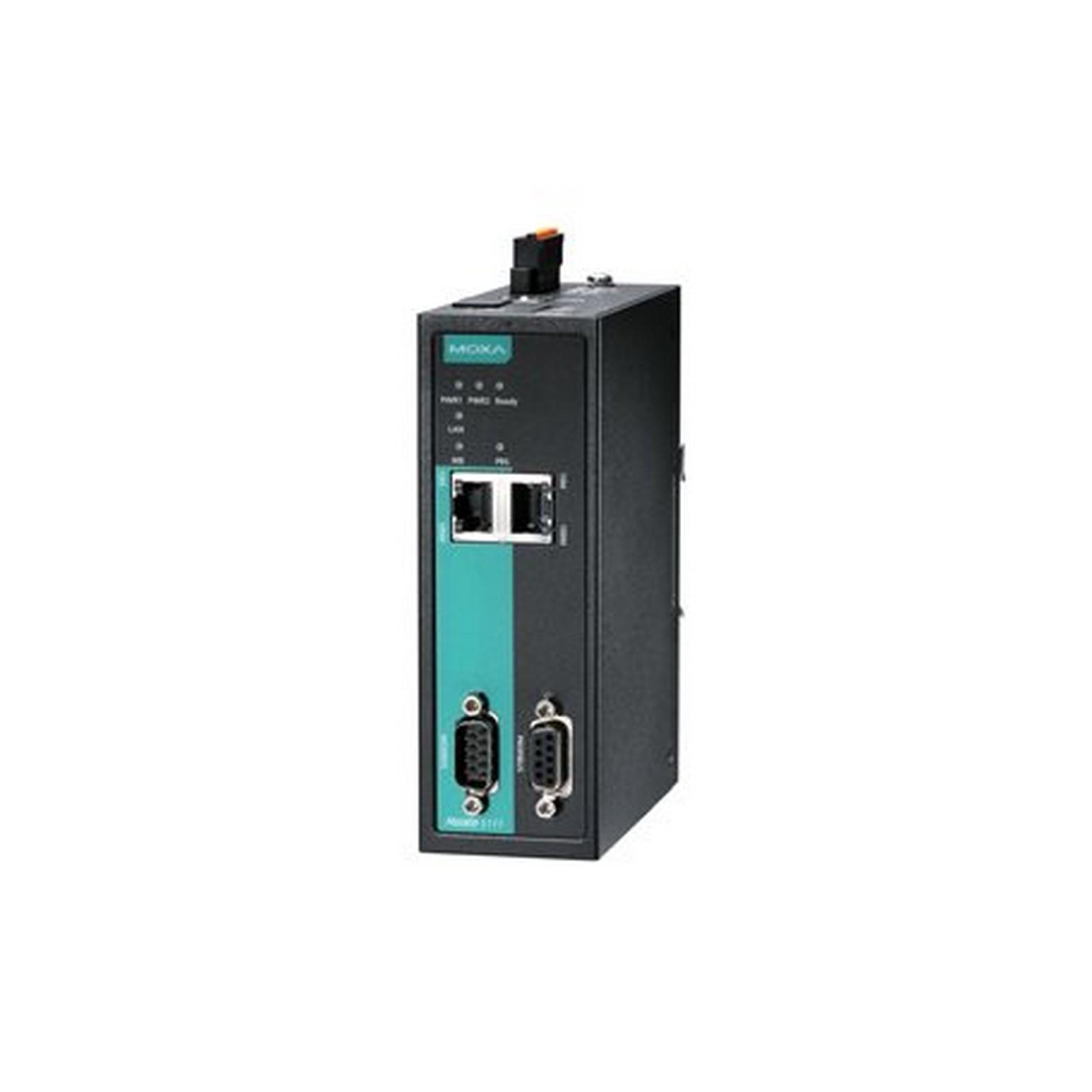

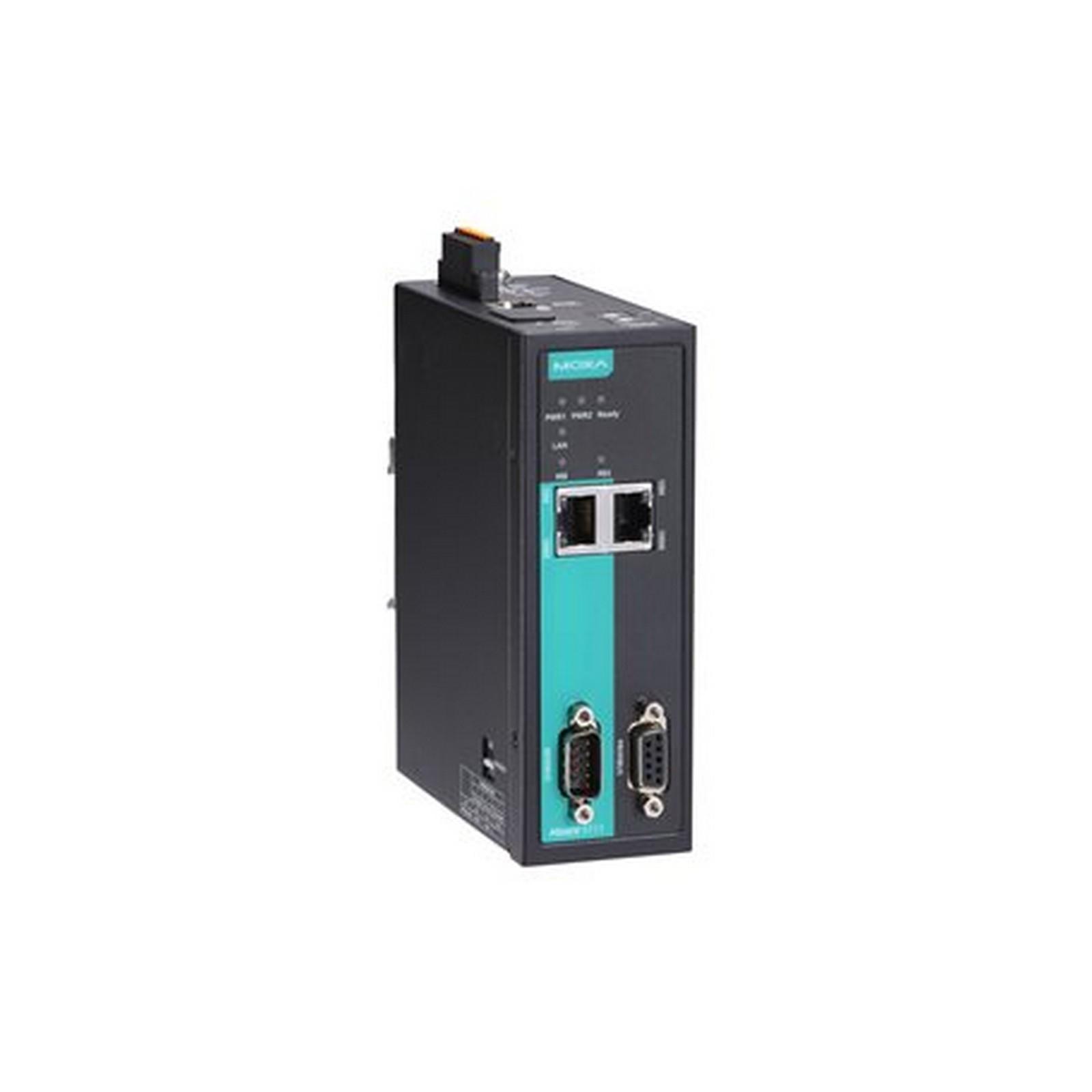

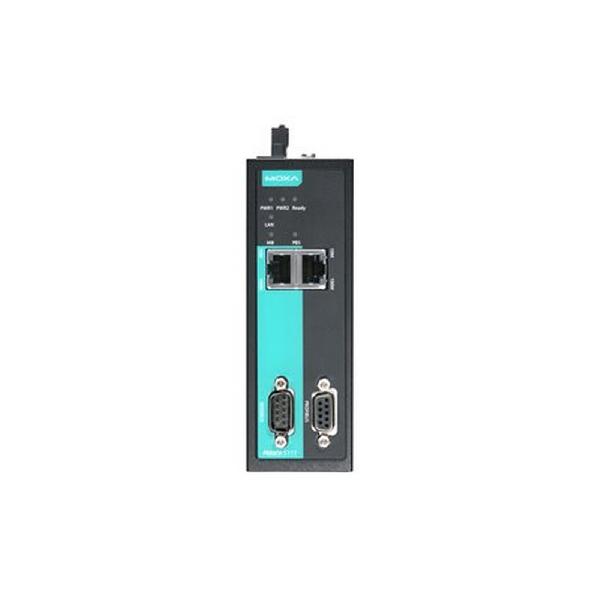

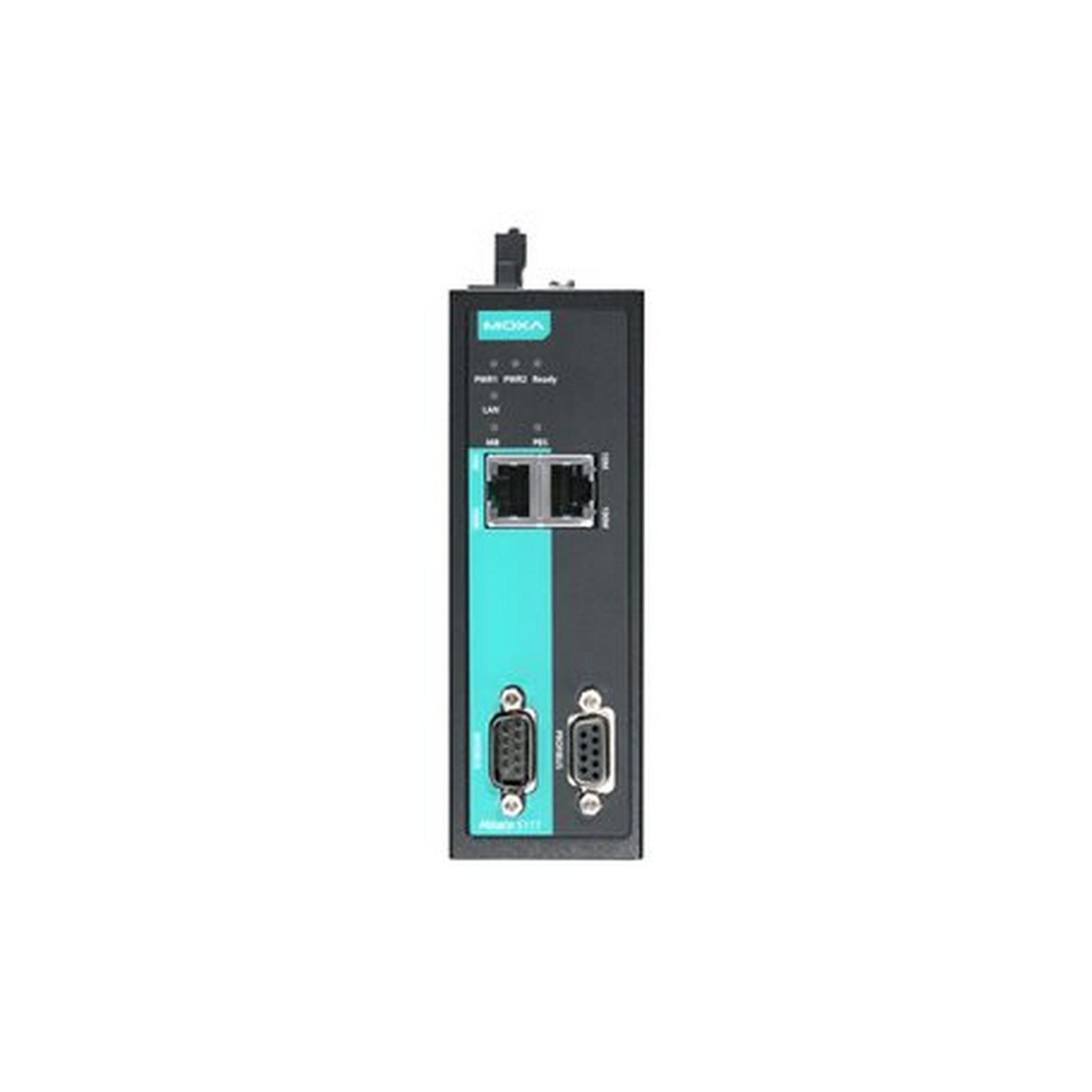

MGate 5111 Series

Home  >   MOXA  >   Industrial Edge Connectivity  >
Protocol Gateways  >   Fieldbus Gateways

1-port Modbus/PROFINET/EtherNet/IP to PROFIBUS slave gateways

Product Feature

  • Converts Modbus, PROFINET, or EtherNet/IP to PROFIBUS
  • Supports PROFIBUS DP V0 slave
  • Supports Modbus RTU/ASCII/TCP master/client and slave/server
  • Supports EtherNet/IP Adapter
  • Supports PROFINET IO device
  • Effortless configuration via web-based wizard
  • Built-in Ethernet cascading for easy wiring
  • Embedded traffic monitoring/diagnostic information for easy troubleshooting
  • Status monitoring and fault protection for easy maintenance
  • microSD card for configuration backup/duplication and event logs
  • Supports redundant dual DC power inputs and 1 relay output
  • Serial port with 2 kV isolation protection
  • -40 to 75°C wide operating temperature models available
  • Security features based on IEC 62443

Introduction

MGate 5111 industrial Ethernet gateways convert data from Modbus RTU/ASCII/TCP, EtherNet/IP, or PROFINET to PROFIBUS protocols. All models are protected by a rugged metal housing, are DIN-rail mountable, and offer built-in serial isolation.

Modbus is one of the most widely used industrial communication protocols, and EtherNet/IP, PROFINET, and PROFIBUS are commonly used in factory automation and process automation. The MGate 5111 supports both Modbus RTU/ASCII/TCP master and slave modes, so that you can easily connect your Modbus device to PROFIBUS PLCs or DCSs, such as Siemens PLCs.

For system integration, the MGate 5111 can connect to EtherNet/IP PLC/SCADA systems, such as Rockwell Automation PLCs, to PROFIBUS PLC/DCS systems, or between a new Siemens PLC system that supports PROFINET to an existing PROFIBUS system. The MGate 5111 gateways are designed for easy configuration and quick maintenance. A handy web console can be used to implement remote maintenance tasks, and the configuration wizard UI lets you quickly set up your gateway. A comprehensive collection of troubleshooting tools reduce configuration time and system downtime. The rugged design is suitable for industrial applications, such as factory automation, power, oil and gas, water and wastewater, and other process automation industries.



Easy Configuration

The MGate 5111 Series has a user-friendly interface that lets you quickly set up protocol conversion routines for most applications, doing away with what were often time-consuming tasks in which users had to implement detailed parameter configurations one by one. With Quick Setup, you can easily access protocol conversion modes and finish the configuration in a few steps.

The MGate 5111 supports a web console and Telnet console for remote maintenance. Encryption communication functions, including HTTPS and SSH, are supported to provide better network security. In addition, system monitoring functions are provided to record network connections and system log events.



A Variety of Maintenance Functions

The MGate 5111 supports Protocol Diagnose and Traffic Monitor for easy troubleshooting, especially during the installation stage. Communication issues caused by incorrect software parameters, such as slave IDs and register addresses, or incorrect command configurations, can be fished out with Protocol Diagnose and Traffic Monitoring, which let you capture and check data to easily identify root causes.

MGate 5111 gateways also support status monitoring and fault protection functions. The status monitoring function notifies a PLC/DCS/SCADA system when a Modbus device gets disconnected or does not respond, in which case the process PLC/DCS gets the status of each end device and then issues alarms to notify operators. When a PROFIBUS cable gets disconnected, the fault protection function executes actions on end devices identified by a predefined value set by the user.

Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)2
Auto MDI/MDI-X connection
Magnetic Isolation Protection1.5 kV (built-in)

Ethernet Software Features

Industrial ProtocolsModbus TCP Client (Master), Modbus TCP Server (Slave), PROFINET IO Device, EtherNet/IP Adapter
Configuration OptionsWeb Console (HTTP/HTTPS), Device Search Utility (DSU), Telnet Console
ManagementARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MIBRFC1213, RFC1317
Time ManagementNTP Client

Serial Interface

 Console Port RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
 No. of Ports 1
 Connector DB9 male
 Serial Standards RS-232/422/485
 Baudrate 50 bps to 921.6 kbps
 Data Bits 7, 8
 Parity None, Even, Odd, Space, Mark
 Stop Bits 1, 2
 Flow Control RTS Toggle (RS-232 only), RTS/CTS
 RS-485 Data Direction Control ADDC® (automatic data direction control)
 Pull High/Low Resistor for RS-485 1 kilo-ohm, 150 kilo-ohms
 Terminator for RS-485 120 ohms
 Isolation 2 kV (built-in)

Serial Signals

 RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
 RS-422 Tx+, Tx-, Rx+, Rx-, GND
 RS-485-2w Data+, Data-, GND
 RS-485-4w Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

 Configuration OptionsSerial Console
 Industrial Protocols PROFIBUS DP-V0 Slave, Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave

Modbus RTU/ASCII

 Mode Master, Slave
 Functions Supported 1, 2, 3, 4, 5, 6, 15, 16, 23
 Max. No. of Commands 128
 Input Data Size 2048 bytes
 Output Data Size 2048 bytes

Modbus TCP

 Mode Client (Master), Server (Slave)
 Functions Supported 1, 2, 3, 4, 5, 6, 15, 16, 23
 Max. No. of Client Connections 16
 Max. No. of Server Connections 32
 Max. No. of Commands 128
 Input Data Size 2048 bytes
 Output Data Size 2048 bytes

PROFIBUS Interface

 Industrial Protocols PROFIBUS DP
 No. of Ports 1
 Connector DB9 female
 Baudrate 9600 bps to 12 Mbps
 Isolation 2 kV (built-in)
 Signals PROFIBUS D+, PROFIBUS D-, RTS, Signal Common, 5V

PROFIBUS

 Rotary Switch PROFIBUS addresses 0-99 (addresses 100-125 supported through software configuration)
 Mode DP-V0 Slave
 Max. No. of Master Connections 1
 Max. No. of PROFIBUS I/O Modules 24
 Input Data Size 244 bytes
 Output Data Size 244 bytes

PROFINET

 Mode IO Device
 Max. No. of IO Controller Connections 1 (for read/write)
 Input Data Size 512 bytes
 Output Data Size 512 bytes

EtherNet/IP

 Mode Adapter
 CIP Objects Supported Identity, Message Router, Assembly, Connection Manager, TCP/IP interface, Ethernet link, Port
 Max. No. of Scanner Connections 1 (for read-only), 1 (for read/write)
 Input Data Size 496 bytes
 Output Data Size 496 bytes

Memory

 microSD Slot Up to 32 GB (SD 2.0 compatible)

Power Parameters

 Input Voltage 12 to 48 VDC
 Input Current 416 mA @ 12 VDC
Power ConnectorSpring-type Euroblock terminal

Relays

Contact Current RatingResistive load: 2 A @ 30 VDC

Physical Characteristics

HousingMetal
IP RatingIP30
Dimensions45.8 x 105 x 134 mm (1.8 x 4.13 x 5.28 in)
Weight589 g (1.30 lb)

Environmental Limits

Operating TemperatureMGate 5111: 0 to 60°C (32 to 140°F)
MGate 5111-T: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)

Standards and Certifications

SafetyEN 60950-1, UL 61010-2-201
EMCEN 61000-6-2/-6-4
EMICISPR 32, FCC Part 15B Class A
EMSIEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
IEC 61000-4-8 PFMF
Hazardous LocationsATEX, Class I Division 2, IECEx
FreefallIEC 60068-2-32
ShockIEC 60068-2-27
VibrationIEC 60068-2-6, IEC 60068-2-64

MTBF

 Time 718,131 hrs
 Standards Telcordia SR332

Warranty

 Warranty Period 5 years
 Details See www.moxa.com/warranty



Name Type Version Release Date
MGate 5111 Series Datasheet 1.0 01 April 2021

MGate 5111

Operating Temp. 0 to 60°C

MGate 5111-T

Operating Temp. -40 to 75°C
